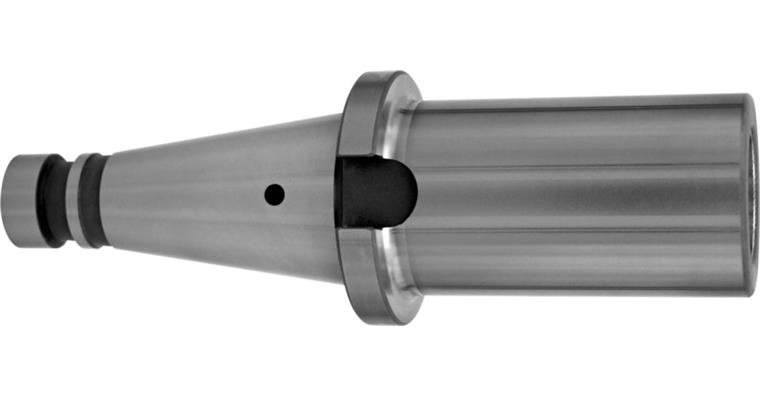

ATORN SK40 MK2 spacer sleeve (DIN2080) A=50 mm

ATORN SK40 MK2 spacer sleeve (DIN2080) A=50 mm

ATORN SK40 MK2 spacer sleeve (DIN2080) A=50 mm
Item no: 1021617 214

Online price:

Available in 8-10 working days.

Application
For holding tools with Morse taper shank in accordance with DIN 228 A with clamping thread.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm, black oxide finish
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm

Delivery
1x HSK63 spacer sleeve (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Form: A
Mount, on tool side (MK): MK 2
Projecting length (A): 50 mm
Outer diameter (D): 32 mm
Tool holding device: SK 40
DIN: 2080

ATORN-No.: 22661088

EAN no.: 4050293715033

Product Datasheet
