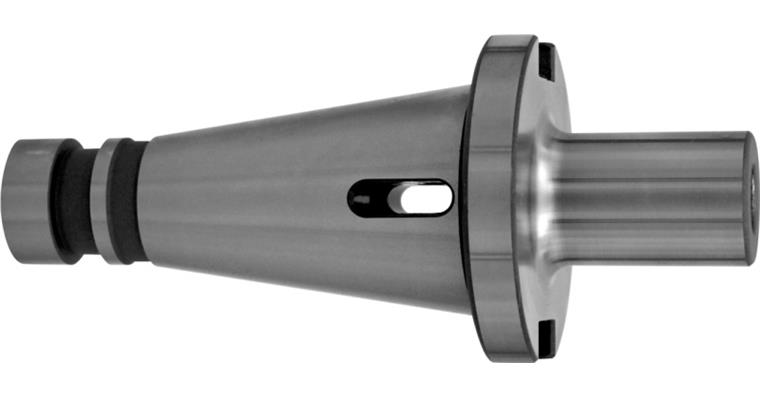

ATORN SK50 DIN6383 MK5 spacer sleeve (DIN2080) A=105 mm

ATORN SK50 DIN6383 MK5 spacer sleeve (DIN2080) A=105 mm

ATORN SK50 DIN6383 MK5 spacer sleeve (DIN2080) A=105 mm
Item no: 1021617 213

Online price:

Available in 8-10 working days.

Application
For holding tools with Morse taper shank and flat tangs in accordance with DIN 228-1 form B.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. concentricity < 0.005 mm
  • With ring groove and plastic edge protection ring on the pull stud
  • Functional surfaces precision-ground, all other surfaces black-oxide
  • With Balluff chip hole

Advantage
Precision cross-hatch pattern on the contact surface for maximum accuracy

Delivery
1x SK30, SK40 or SK50 spacer sleeve (DIN2080)


Brand: ATORN
Form: A
Mount, on tool side (MK): MK 5
Projecting length (A): 105 mm
Outer diameter (D): 63 mm
Tool holding device: SK 50
DIN: 2080

ATORN-No.: 22661254

EAN no.: 4050293715132

Product Datasheet
