Taper sleeve MAS 403 BT/JIS 6339 shape JD BT50 MT3

Taper sleeve MAS 403 BT/JIS 6339 shape JD BT50 MT3

Taper sleeve MAS 403 BT/JIS 6339 shape JD BT50 MT3
Item no: 1021611 107

Online price:

Available in 8-10 working days.

Application
For mounting tools with MK shanks and flat tangs.

Execution
Precision design

Notes
For pull studs, see art. no. 1021733-1021740.

Tool description:
For tools with Morse taper shank and flat tangs according to DIN 228 B. Case-hardening steel, functional surfaces hardened and ground. Taper angle tolerance in accordance with AT 3. Concentricity deviation between the taper and internal cone <= 0.008 mm.

Brand: LIZZARD
Mount, on tool side (MK): MK 3
Projecting length (A): 65,0 mm
Outer diameter (D): 40,0 mm
Tool holding device: BT 50
Construction length: Short
Coolant supply: External
ISO: 7388-2
Max. concentricity: 0,005 mm
Standard shank design: JIS B 6339 MAS BT
Surface: Uncoated
Tightening thread: M24

EAN no.: 4024496060306

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Taper sleeve MAS 403 BT/JIS 6339 shape JD BT50 MT2
    75,34 €
  • Taper sleeve MAS 403 BT/JIS 6339 shape JD BT50 MT4
    75,34 €
  • ATORN clamping rail W120 H80 L600
    1.976,00 €
  • ATORN clamping rail, individual, 300 x 50 mm
    883,60 €
  • ATORN clamping rail, individual, 300 x 80 mm
    961,62 €
  • ATORN clamping rail, individual, 400 x 50 mm
    961,62 €
  • ATORN clamping rail, individual, 500 x 80 mm
    1.392,14 €
  • Clip-O-Flex rolling container with 1 door, with fixed support angles and 6 trays
  •
    Cabinet with slotted panel door MOD.5 7035/7016
  •
    Spind Classic PLUS, Füße, 3 Abteile, 1950x1200x500mm RAL 7035/7016
  •

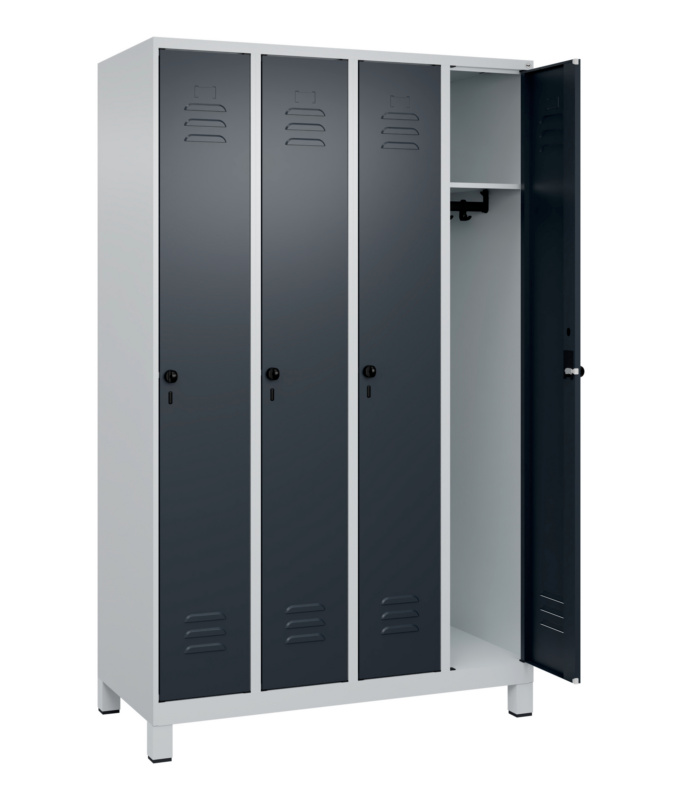

    Spind Classic PLUS, Füße, 4 Abteile, 1950x1200x500mm RAL 7035/7016
