Shrink-fit chuck DIN 69893 shape E HSK40 extra-long diameter 8 x 120 mm

Shrink-fit chuck DIN 69893 shape E HSK40 extra-long diameter 8 x 120 mm

Shrink-fit chuck DIN 69893 shape E HSK40 extra-long diameter 8 x 120 mm
Item no: 1021599 124

Online price:

Available in 6-8 working days.

Application
For clamping carbide, HSS and steel shanks with a tolerance of h6.

Execution
  • Highest level of concentricity and taper tolerance
  • Manufactured in air-conditioned production

Advantage
  • High retention forces and long service life thanks to the use of high-quality heat-resistant steels and special heat treatment processes
  • Patented taper allows automatic shrink processes and simplified handling

Notes
For shrinking equipment, see art. no. 1021588-1021595.

Brand: DIEBOLD
Tool holding device: HSK 40
Clamping diameter (d): 8,0 mm
Projecting length (A): 120,0 mm
Outer diameter (d3): 27,0 mm
Tapered diameter (d2): 21,0 mm
Clamp in depth (l2): 36,0 mm
Max. adjustment travel (max. V): 10 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 40,000 rpm
Construction length: Long
Max. concentricity: 0,003 mm
Thread dimension: M6

Manufacturer part no.: 72.568.500.240

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN RockTec PRO HPC end mill, long, KR 20x60x70x126 mm T=4 HA r=0.3
  •
    Carbide internal lathe chisel DIN 4973/ISO 8 right setting angle 75° P20 10 Q
  •
    Carbide internal lathe chisel DIN 4973/ISO 8 right setting angle 75° P20 12 Q
  •
    Milling cutter holder short with CCB DIN 69871 AD/B SK40 14 x 50 mm
  •
    ATORN RockTec PRO HPC end mill, KR 10x22x30x72 mm T=4 HA r=0.2
  •
    3M™ Speedglas™ Standard front cover lens, pack of 10
  •
    Carbide internal lathe chisel DIN 4973/ISO 8 right setting angle 75° K10 32 Q
  •
    Carbide internal lathe chisel DIN 4973/ISO 8 right setting angle 75° P30 32 Q
  •
    ATORN shrink-fit chuck 3° HSK63 (ISO 12164) dia. 10 mm A=85 mm
  •
    Shrink-fit chuck slim DIN 69893 shape E HSK40 short dia. 12x60mm stainless steel
  •
    Carbide internal lathe chisel DIN 4973/ISO 8 right setting angle 75° P20 16 Q
  •

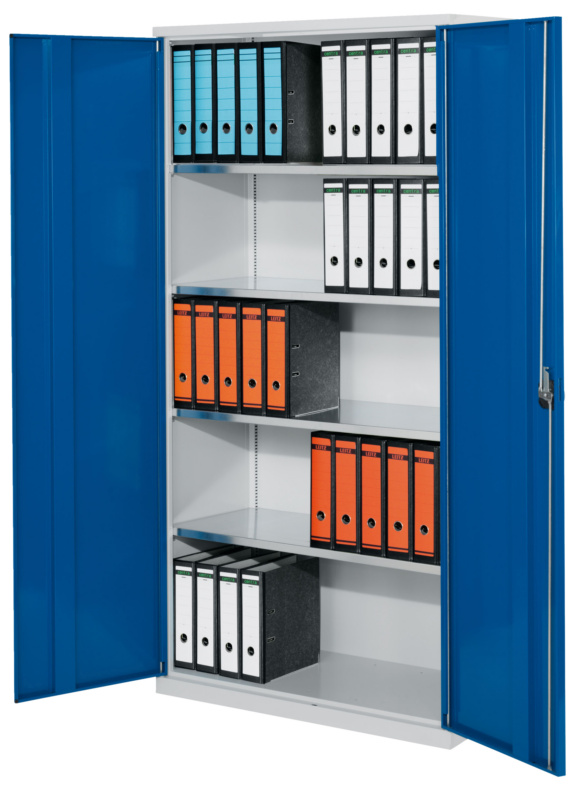

    Universal hinged door cabinet 1950x1000x500 mm RAL 7035/5010
