Shrink-fit chuck DIN 69893 shape A HSK63 diameter 6 x 80 mm

Shrink-fit chuck DIN 69893 shape A HSK63 diameter 6 x 80 mm

Shrink-fit chuck DIN 69893 shape A HSK63 diameter 6 x 80 mm
Item no: 1021597 104

Online price:

Available in 6-8 working days.

Application
For clamping carbide, HSS and steel shanks with a tolerance of h6.

Execution
  • Highest level of concentricity and taper tolerance
  • Manufactured in air-conditioned production

Advantage
  • High retention forces and long service life thanks to the use of high-quality heat-resistant steels and special heat treatment processes
  • Patented taper allows automatic shrink processes and simplified handling

Notes
Coolant tube, see art. no. 1021864.
Key for coolant tube, see art. no. 1021865.
For shrinking equipment, see art. no. 1021588-1021595.

Brand: DIEBOLD
Tool holding device: HSK 63
Clamping diameter (d): 6,0 mm
Projecting length (A): 80,0 mm
Outer diameter (d3): 27,0 mm
Tapered diameter (d2): 21,0 mm
Clamp in depth (l2): 36,0 mm
Max. adjustment travel (max. V): 10,0 mm
Coolant supply: Internal
Balancing quality: G 2.5 at 25,000 rpm
Construction length: Short
Max. concentricity: 0,003 mm
Surface: Chrome / A2 appearance
Thread dimension: M5

Manufacturer part no.: 72.575.500.101

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap HSSE HL, 6GX, 0 degrees, form B, M2
  •
    Shrink-fit chuck DIN 69893 shape E HSK40 diameter 3 x 60 mm
    188,60 €
  • Schlosserwinkel flach Stahl verzinkt 150 x 100 mm
    10,94 €

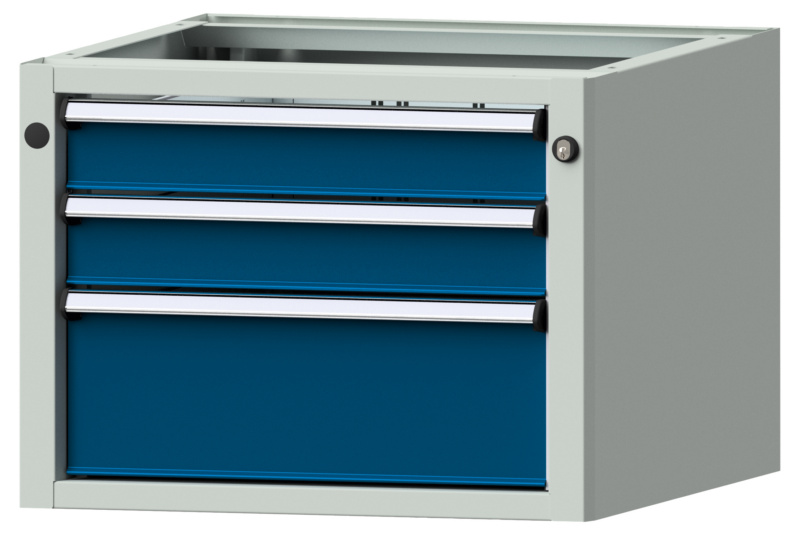

  • Undercounter cabinet model 903 V WxDxH 570x615x330 mm RAL 7035/5012
