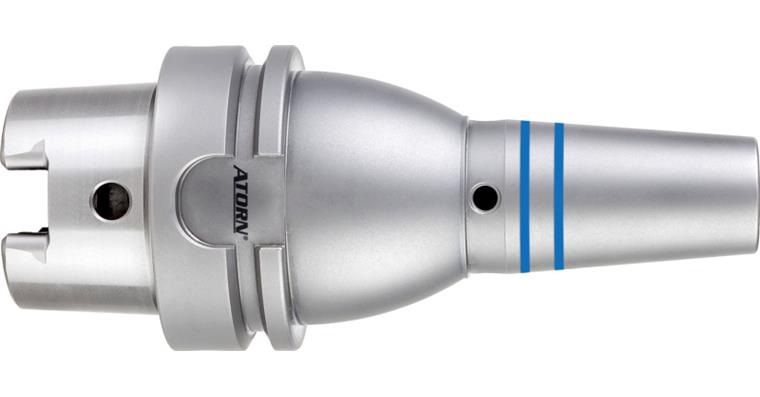

ATORN shrink-fit chuck HSK63 x 6 A120 (KKB) long version, heavy-duty machining

ATORN shrink-fit chuck HSK63 x 6 A120 (KKB) long version, heavy-duty machining

ATORN shrink-fit chuck HSK63 x 6 A120 (KKB) long version, heavy-duty machining
Item no: 1021589 700

Online price:

Available in 5-7 working days.

Application
For clamping cutters and drills with straight shanks in h6 tolerance. Suitable for heavy-duty machining and all high-power applications.

Execution
  • Guarantees maximum concentricity of 0.003 mm
  • Shrink grip and shrink release of carbide and HSS tools
  • Hardness 52 + 2 HRC
  • Maximum coolant pressure 80 bar
  • Adjustment travel 10 mm, can be adjusted on both sides
  • 4 additional drill holes for fine balancing
  • With Balluff chip hole
  • Geometry significantly improves damping behaviour

Advantage
  • High transmittable torques
  • High chip removal rate, perfect for HSC machining
  • Protects the spindle and machine
  • Ideal for high rotation speeds
  • Improved surface quality

Delivery
1x HSK63 shrink-fit chuck (ISO 12164)

Notes
The previous standard DIN 69871 was superseded by ISO 12164.

Brand: ATORN
Tool holding device: HSK 63
Clamping diameter (d): 6 mm
Projecting length (A): 120 mm
Outer diameter (D): 52,5 mm
Tapered diameter (d2): 21 mm
Diameter (d3): 52,5 mm
Shaft length (l1): 51 mm
Clamp in depth (l2): 36 mm
Suitable for thread ( G): M5
Max. adjustment travel (V): 10 mm
Concentricity tolerance: 0,003 mm
Coolant supply: KKB
Balancing quality: G 2.5 at 25,000 rpm

ATORN-No.: 21044700
