Sealed prcsn collet chuck set diameter 4/6/8/10/12/14/16 mm GERC16HPD/425E 26x34

Sealed prcsn collet chuck set diameter 4/6/8/10/12/14/16 mm GERC16HPD/425E 26x34

Sealed prcsn collet chuck set diameter 4/6/8/10/12/14/16 mm GERC16HPD/425E 26x34
Item no: 1021565 120

Online price:

Available in 6-8 working days.

Application
For HSC machining with high precision machining results

Execution
  • HPD with seal for inner coolant supply (can be used up to 120 bar)
  • With small concentricity and repetition 2 µm (for system tolerance 3 µm and with 3 x D maximum = 50 mm), clamp bridge h10
  • For ATORN precision collet chucks and Fahrion CentroP precision collet chucks
  • With FAHRION|Protect corrosion protection for longer service life
  • Surface super-finished for enhanced retention force

Advantage
  • Greater concentricity extends tool service life
  • Collet chucks do not need to be replaced as often or can be used for longer for specific applications

Delivery
In wooden case


Brand: FAHRION
Collet type: 429E GERC25-HPD
Min./max. clamping range: 4.0-16.0 mm
Outer diameter (D): 25,7 mm
Length (L): 34,0 mm
Coolant supply: Internal axial
Clamping bypass: 0,0 mm
ISO: 15488
Max. clamping range: 16,0 mm
Min. clamping range: 4,0 mm
Max. concentricity: 0,003 mm

Manufacturer part no.: 22150

EAN no.: 4054631170775

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Rack f. 2/200+3/60 drums, add-on bay w/o grating ext. dimensions 1507x800x2200mm
  •
    Rack f. 2/200+3/60 drums, add-on bay w/ grating ext. dimensions 1507x800x2200 mm
  •
    ATORN shrink-fit chuck with KKB SK40 (ISO 7388-1) diameter 20 mm A=80 mm
  •
    Phillips screwdriver Soft-Finish handle DIN ISO 8764 PZ 01x25 mm
  •
    Torque interchangeable blade 4 mm hexagon for torque screwdriver 55500-504 PZ 1
  •
    Werkbank H740-1040xB2000xT700 mm Höhenverstellung mechanisch 3x Schublade
  •

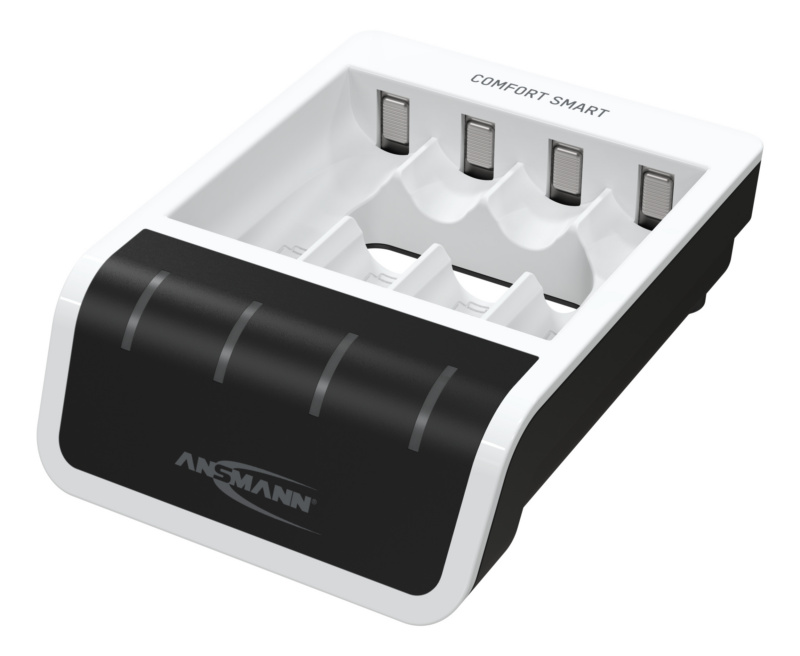

    Akku-Ladegerät Comfort Smart Pack=1 Stk
  •
