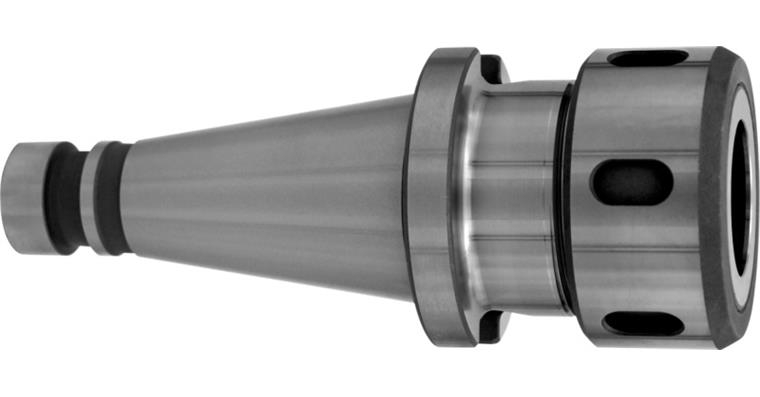

ATORN SK30 collet chuck (DIN2080) OZ (2-16 mm) A=50 mm

ATORN SK30 collet chuck (DIN2080) OZ (2-16 mm) A=50 mm

ATORN SK30 collet chuck (DIN2080) OZ (2-16 mm) A=50 mm
Item no: 1021542 107

Online price:

Available in 8-10 working days.

Application
For clamping tools with straight shank in ER collet chucks in accordance with DIN 6499.

Execution
  • Alloyed case-hardening steel, core tensile strength at least 950 N/mm²
  • Internal coolant supply
  • Case-hardened HRc 60 ± 2 (HV 700 ± 50), hardness depth 0.8 mm ± 0.2 mm
  • Max. concentricity < 0.005 mm
  • Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • With Balluff chip hole
  • All functional surfaces are machined

Advantage
Präzisionskreuzschliff an der Anlagefläche für höchte Genauigkeit

Delivery
1x SK30, SK40 or SK50 collet chuck (DIN2080) OZ version


ATORN-No.: 22661082

EAN no.: 4050293714975

Product Datasheet
