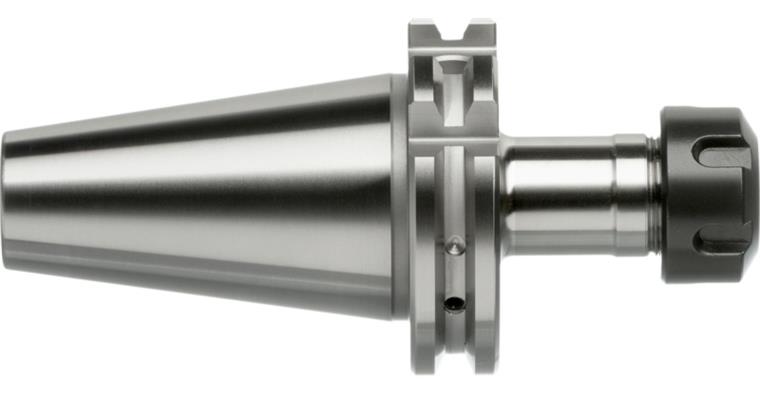

ATORN collet chuck with planar contact face SK50 (ISO 7388-1) ER32 A=100 mm

ATORN collet chuck with planar contact face SK50 (ISO 7388-1) ER32 A=100 mm

ATORN collet chuck with planar contact face SK50 (ISO 7388-1) ER32 A=100 mm
Item no: 1021529 014

Online price:

Available in 4-6 working days.

Application
For clamping tools with lateral driving surfaces in accordance with DIN 1835 B and DIN 6535 HB.

Execution
  • Pre-balanced G6.3/25,000 rpm
  • Precision version
  • External and internal cone polished
  • High concentricity

Advantage
  • Positive-locking planar contact face for increased rigidity and vibration damping
  • Extends the service life of cutting tools

Delivery
1x SK40 collet chuck (ISO 7388-1); incl. clamping nut

Notes
The previous standard DIN 69871-1 was superseded by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 50
Form: AD
Collet type: ER 32 (470 E)
Projecting length (A): 100 mm
Outer diameter (D): 50 mm
Min./max. clamping range: 2-20 mm
Coolant supply: Internal
Balancing quality: G 6,3 at 25000 rpm
Concentricity tolerance: 5 µm

ATORN-No.: 21981126

EAN no.: 4050293647310

Product Datasheet
Versions
