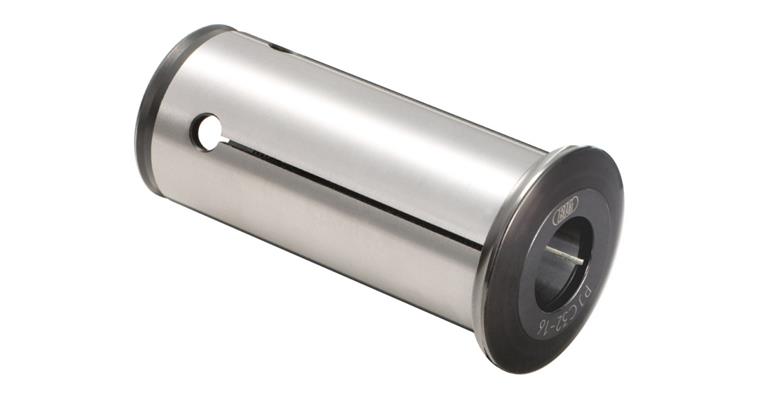

Reducing sleeve PJC20-8

Reducing sleeve PJC20-8

Reducing sleeve PJC20-8
Item no: 1021497 232

Online price:

Available in 4-6 working days.

Application
For reducing the clamping diameter.

Execution
  • Coolant through the centre
  • Reducing sleeves for power chuck diameter 20

Advantage
Cooling on shank


Brand: BIG DAISHOWA
Clamping diameter (Ød): 8 mm
Chuck clamping diameter (ØD1): 20 mm
Length (L): 61 mm
Min./max. clamping depth (Spannbereich E - H): 40-61 mm
Collar diameter (ØD): 27 mm
Collar width (A): 5,7 mm
Coolant supply: Internal
Construction length: Long
Shank diameter: 8 mm

Manufacturer part no.: 962477

Product Datasheet
