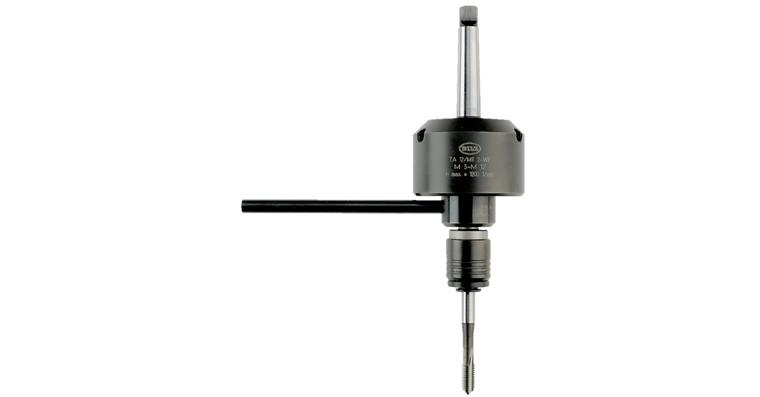

Thread cutting device type TA12/MK2 for M3-M12

Thread cutting device type TA12/MK2 for M3-M12

Thread cutting device type TA12/MK2 for M3-M12
Item no: 1021410 102

Online price:

Available in 6-8 working days.

Application
Thread cutting and moulding on machines with driven spindle and manual feed. Machine type: Pillar/boom drills, machines with driven spindle.

Execution
  • These devices are designed for thread cutting on drills with manual feed and without reversing the direction of the spindle
  • When inserted in the machine, the stop arm must be secured against twisting so that the functionality of the device is guaranteed
  • The integrated reversing gear means that thread cutting is possible without reversing the direction of the spindle
  • Double feed in reverse motion
  • Screw tap quick-change system

Advantage
  • By withdrawing the machine spindle once the thread depth has been reached, the apparatus is automatically switched. The switching process is performed using a low-wear ball system
  • The apparatus is maintenance-free and suitable for both right-hand and left-hand threads
  • Rapid tool replacement
  • Higher flexibility

Notes
For quick-change inserts, see art. no. 1021459-1021460. Thread-cutting devices with other shanks deliverable on request.

1) Notch
2) Torque support

Brand: BILZ
Morse taper size: MK 2
Suitable for thread: M3-M12
Diameter (D1): 32,0 mm
Diameter 2 (D2): 19,0 mm
Projecting length (A): 140,0 mm
Length: 60,0 mm
Max. rotation speed: 1200 rpm
Outer diameter (D): 80,0 mm

Manufacturer part no.: TA12/MK2

Product Datasheet
