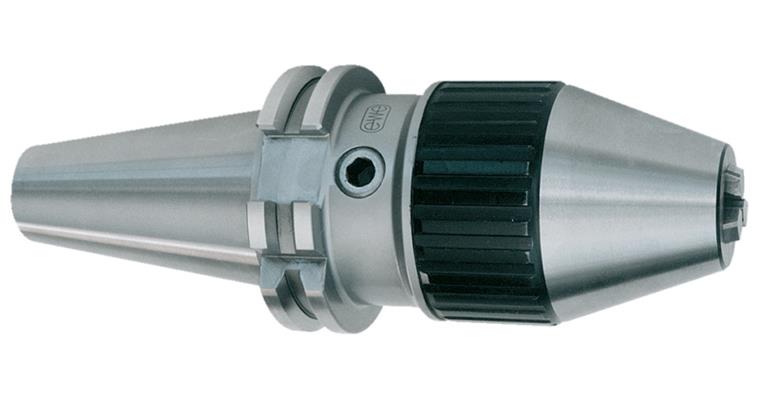

Precision short chuck ewe DIN 69871A SK40 1-13 mm

Precision short chuck ewe DIN 69871A SK40 1-13 mm

Precision short chuck ewe DIN 69871A SK40 1-13 mm
Item no: 1021206 101

Online price:

Still in stock: 3

Execution
  • Pre-balanced according to G 16 - 12,000 rpm, residual imbalance max. 25 g/mm. Functional surfaces hardened and ground, maximum concentricity. Short, robust design, chuck and shank are attached rigidly together
  • 2000 Super, for clockwise and anti-clockwise rotation, high clamping force due to gear ratio, self-locking against loosening. The chuck does not open when rotating anti-clockwise and braking rapidly from high rotation speeds. Tightened and loosened using an Allen key, making it possible to change tools at the machine


Brand: EWE
Tool holding device: SK 40
Min./max. clamping width: 1.0-13.0 mm
Projecting length (A): 87,5 mm
Outer diameter (D2): 43,0 mm
Form: A
Concentricity tolerance: 0,030 mm
Coolant supply: External
Balancing quality: G 6.3 at 12,000 rpm
DIN: 69871-1
Standard shank design: DIN 69871-1 A
Tightening thread: M16

Manufacturer part no.: 805.532

Product Datasheet
