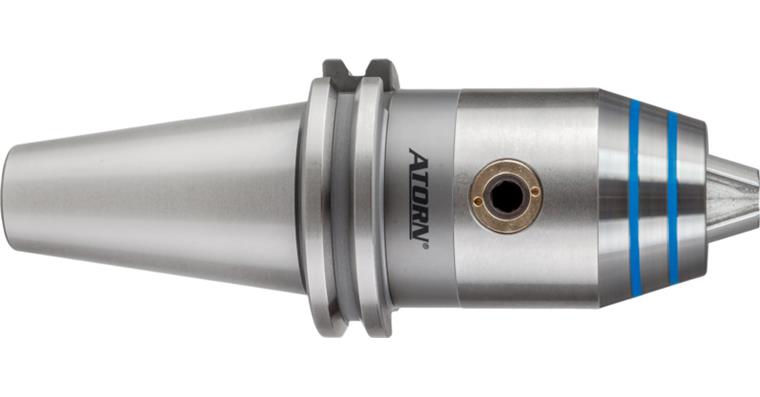

ATORN SK40 CNC precision drill chuck 0.5-16 mm ISO 7388-1 shape A

ATORN SK40 CNC precision drill chuck 0.5-16 mm ISO 7388-1 shape A

ATORN SK40 CNC precision drill chuck 0.5-16 mm ISO 7388-1 shape A
Item no: 1021199 301

Online price:

Available for immediate delivery

Application
For use on machining centres and CNC machines with tool changer.

Execution
  • 100 % concentricity check using different test pin diameters at various measuring points, based on DIN ISO 10888
  • Concentricity tolerance 0.03 mm over the entire clamping range
  • With worm gear
  • Shape A with steep taper, no internal coolant supply

Advantage
Remains securely clamped even if the spindle stops suddenly

Delivery
1x SK40 CNC precision drill chuck (ISO 7388-1)

Notes
The previous standard DIN 69871-1 was replaced by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 40
Min./max. clamping width: 0.5-16 mm
Projecting length (A): 90 mm
Outer diameter (D): 57 mm
Length, open (Länge geöffnet L1): 103 mm
Length 2 (L1 max.): 103 mm
Concentricity tolerance: 0,020 mm
Coolant supply: No
Balancing quality: G 6,3 at 25000 rpm
DIN: 69871-1

ATORN-No.: 21040100

EAN no.: 4050293321319
