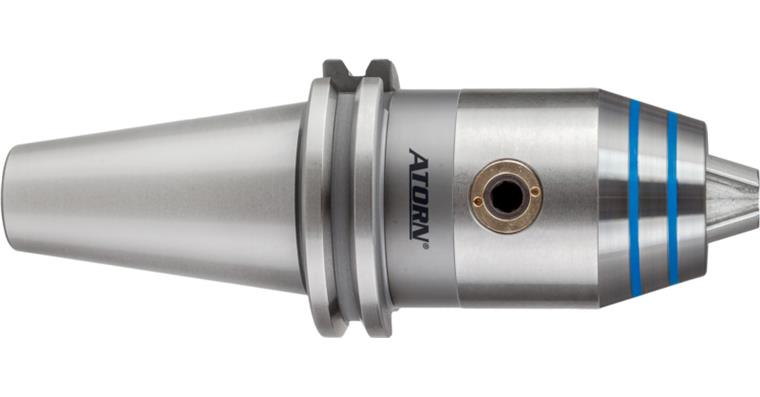

ATORN SK40 precision drill chuck DIN 69871 A dia. 0.5-16

ATORN SK40 precision drill chuck DIN 69871 A dia. 0.5-16

ATORN SK40 precision drill chuck DIN 69871 A dia. 0.5-16
Item no: 1021199 300

Online price:

Still in stock: 2

Application
For use on machining centres and CNC milling machines with tool change. For drilling, reaming, countersinking and also light milling and smoothing tasks.

Execution
Wear parts hardened and polished

Advantage
Remains securely clamped even if the spindle stops suddenly

Delivery
1x SK40 precision drill chuck (ISO 7388-1)

Notes
The previous standard DIN 69871-1 was replaced by ISO 7388-1.

Brand: ATORN
Tool holding device: SK 40
Min./max. clamping width: 0.5-16 mm
Projecting length (A): 90 mm
Outer diameter (D): 57 mm
Length, open (Länge geöffnet L1): 103 mm
Length 2 (L1 max.): 103 mm
Concentricity tolerance: 0,020 mm
Coolant supply: Internal
Balancing quality: G 6,3 at 25000 rpm
DIN: 69871-1

ATORN-No.: 21040140

EAN no.: 4050293321319

Product Datasheet
