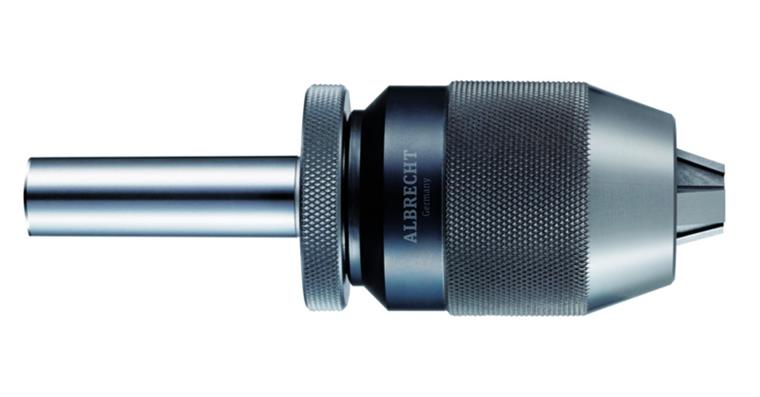

High-performance three-jaw drill chuck type SBF mount dia. 16 mm 1-13 mm

High-performance three-jaw drill chuck type SBF mount dia. 16 mm 1-13 mm

High-performance three-jaw drill chuck type SBF mount dia. 16 mm 1-13 mm
Item no: 1021180 104

Online price:

Still in stock: 1

Application
For clamping and releasing drilling tools quickly without a key.

Execution
  • SBF-plus drill chuck, shortened version
  • Precision design
  • With diamond-coated clamping jaws for hardened tool shanks
  • N° de réf 21314160 avec mors de serrage à revêtement diamant pour queues d'outils trempées

Advantage
  • Drill chuck and drive arbour form one unit, which means that optimal stability and a minimal concentricity tolerance can be achieved.
  • Particularly advantageous on machines with a small working area thanks to it being 21 mm shorter than the two-part version.


Brand: ALBRECHT
Min./max. clamping width: 1.0-13.0 mm
Adapter diameter (Zylinderschaft): 16,0 mm
Projecting length (A): 79,0 mm
Running direction: Clockwise rotation
With clamping force retainer: No
Length closed: 91,0 mm
Housing length: 79,0 mm
Outer diameter (D): 50,0 mm
Shank diameter: 16,0 mm

Manufacturer part no.: 100 0130 Z16 0

EAN no.: 4250261510909

Product Datasheet
