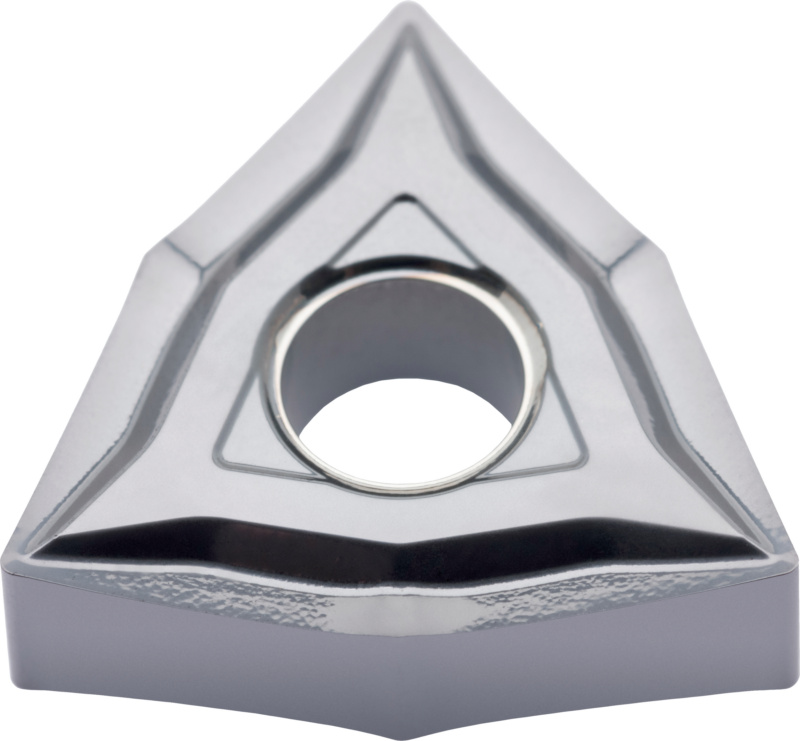

Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P35
Carbide type: ACP35T
ISO-Code Rotating: TNMG 160408
Material to be processed: Steel | Stainless steel
min./max. ap: 0.25-4.5 mm
f min./max.: 0.12-0.4 mm/U
Materials group: P (primary application) | M (secondary application)
f min.: 0,12 mm/r
max. f: 0,4 mm/r
max. ap: 4,5 mm
min. ap: 0,25 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP5
Min./max. Vc in steel: 140-190 m/min
Min./max. Vc in stainless steel: 140-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370048

EAN no.: 4050293564617
