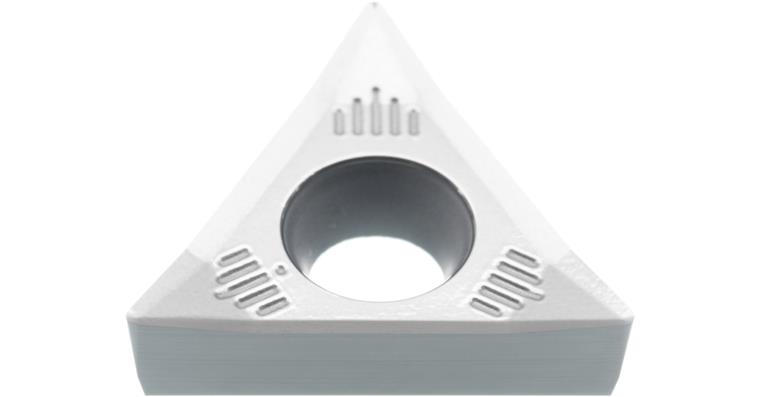

ATORN cemented carbide indexable insert TCGT 16T304-MN5 AWN15T

ATORN cemented carbide indexable insert TCGT 16T304-MN5 AWN15T

ATORN cemented carbide indexable insert TCGT 16T304-MN5 AWN15T
Item no: 1019419 102

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and facing with a wide infeed range in favourable cutting conditions

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Carbide type area ISO: N
Machining conditions for indexable insert: Good
Carbide type ISO: N15
Carbide type: AWN15T
ISO-Code Rotating: TCGT 16T304
Material to be processed: Non-ferrous metal | Cast metal | Special alloy
min./max. ap: 0.1-4.5 mm
f min./max.: 0.1-0.4 mm/U
Materials group: N (primary application) | K (secondary application) | S (secondary application)
f min.: 0,1 mm/r
max. f: 0,4 mm/r
max. ap: 4,5 mm
min. ap: 0,1 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MN5
Min./max. Vc in cast iron: 120-200 m/min
Min./max. Vc in non-ferrous metals: 100-2000 m/min
Min./max. Vc in special alloys: 18-50 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370156

EAN no.: 4050293565690

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN cemented carbide indexable insert CCGT 09T308-MN5 AWN15T
  •
    ATORN cemented carbide indexable insert TCGT 16T308-MN5 AWN15T
  •
    ATORN carbide indexable insert CCMT 09T308-MP5 ACP35T
    6,72 €
  • ATORN cemented carbide indexable insert DCGT 11T304-MN5 APN15T
  •
    ATORN carbide indexable insert TCMT 110208-MK ACK20T
  •
    1/4 inch bi-hex socket, dynamic drive profile AF inch 11/32
    6,34 €
  • ATORN carbide indexable insert TNMG 160408-MK ACK20T
    7,56 €
  • ATORN carbide indexable insert VCGT 110301-FFM APM20T
  •

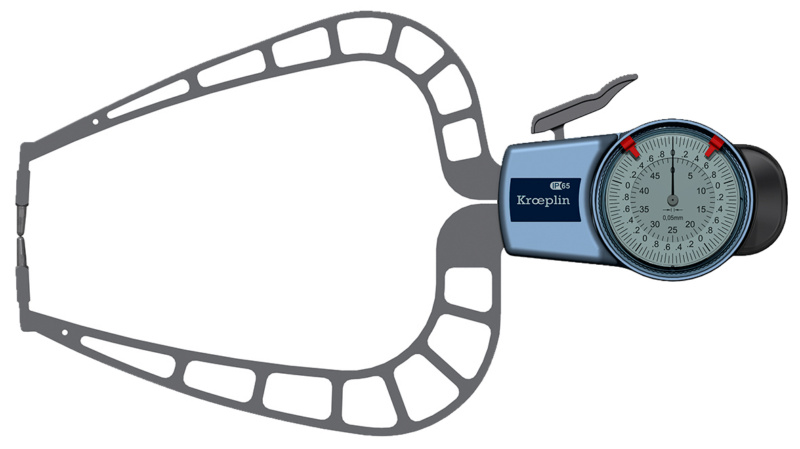

    External quick probe with carbide ball dia. 3.0 mm D450 MR 0-50 mm
  •
