ATORN indexable insert SNMM 190612-RP6 HC7615

ATORN indexable insert SNMM 190612-RP6 HC7615

ATORN indexable insert SNMM 190612-RP6 HC7615
Item no: 1019418 200

Online price:

Available for immediate delivery

Notes

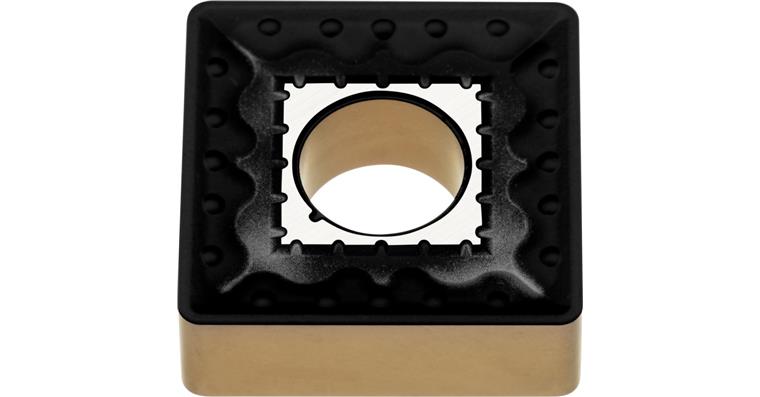

Indexable insert SNMM 190612-RP6 HC7615

Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: M
Size of indexable insert ISO: 19
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 12
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: HC7615
ISO-Code Rotating: SNMM 190612
Material to be processed: Steel | Cast iron
min./max. ap: 2.4-13 mm
f min./max.: 0.35-1.8 mm/U
f min.: 0,35 mm/r
max. f: 1,8 mm/r
max. ap: 13 mm
min. ap: 2,4 mm
Chip breaker code: RP6
Min./max. Vc in steel: 110-350 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350343

EAN no.: 4066107024550

Product Datasheet Datasheet cutting values
