Brand: ATORN
Shape of indexable insert ISO: K
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: U
Indexable insert type ISO: X
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 05
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type: ACM40D

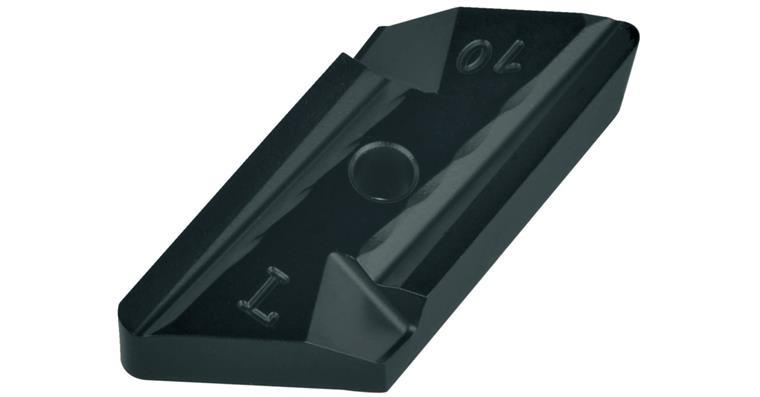

ISO-Code Rotating: KNUX 160405
Material to be processed: Steel | Stainless steel
min./max. ap: 0.5-4.8 mm
f min./max.: 0.2-0.6 mm/U
Materials group: M (secondary application) | P (primary application)
f min.: 0,2 mm/r
max. f: 0,6 mm/r
max. ap: 4,8 mm
min. ap: 0,5 mm
Supply type: Roughing | Smoothing | Medium finishing
Chip breaker code: SL
Min./max. Vc in steel: 90-180 m/min
Min./max. Vc in stainless steel: 50-160 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370826

EAN no.: 4050293729818
