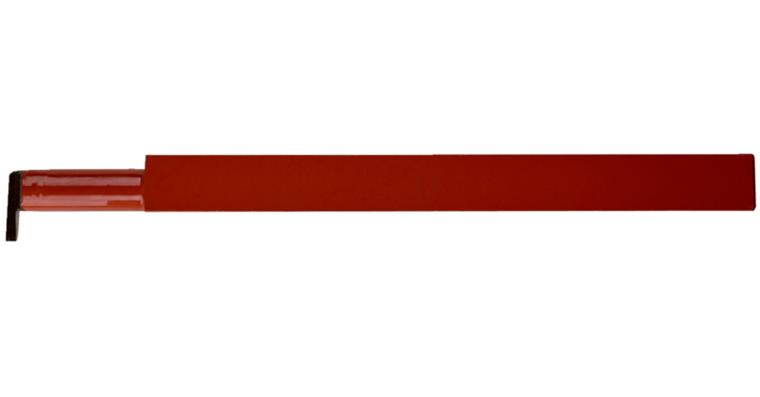

Hook lathe chisel similar to DIN 4963 right HSS-Co 10 Q

Hook lathe chisel similar to DIN 4963 right HSS-Co 10 Q

Hook lathe chisel similar to DIN 4963 right HSS-Co 10 Q
Item no: 1018893 201

Online price:

Available in 6-8 working days.

Execution
  • Similar to DIN 4963
  • Right
  • Square 10 mm shank made of solid high-performance high-speed steel, with butt-welded HSS-Co head


Brand: ---
Shank width (b): 10 mm
Shaft height (a): 10 mm
Length (l1): 160 mm
Recessing width (e): 4 mm
Max. turning depth (c): 30 mm
Cutting direction: Right-hand cutting
Cutting material: HSS Co
Shank type: Square
Min. bore diameter: 22 mm
Suitable for material group K: 1
Suitable for material group M: 1
Suitable for material group N: 1
Suitable for material group P: 1

EAN no.: 4045053147278

Product Datasheet
