New: ATORN thread cutting insert 27UIR/L8.0ISO HC5615

New: ATORN thread cutting insert 27UIR/L8.0ISO HC5615

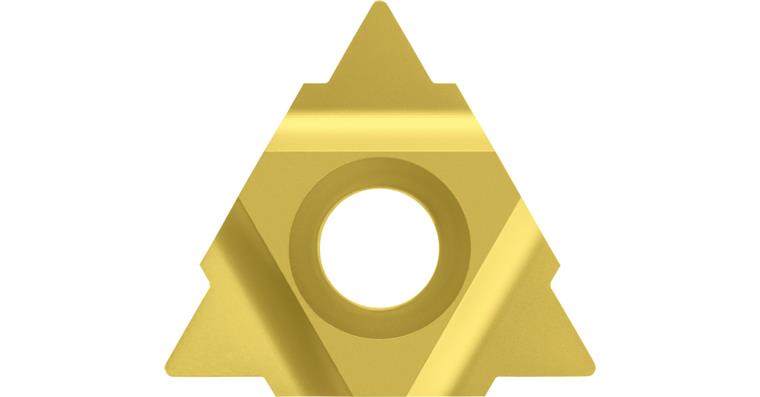

1018832840 ATORN thread cutting insert 27UIR/L8.0ISO HC5615
Item no: 1018832 840

Online price:

Will be ordered for you

Application
For cutting internal threads on CNC lathes.

Execution
polished thread cutting insert

Advantage
polished thread cutting insert with extremely sharp cutting edge, ensures good surface quality and cutting precision with precise profile replication


Size of indexable insert: 27
Pitch: 8,0 mm
Machining direction: Right
Carbide type: HC5615
Min./max. Vc in steel: 55-180 m/min
Min./max. Vc in stainless steel: 60-90 m/min
Min./max. Vc in non-ferrous metals: 200-500 m/min
Min./max. Vc in cast iron: 70-110 m/min

ATORN-No.: 11941998

EAN no.: 4066107083908
