Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7820

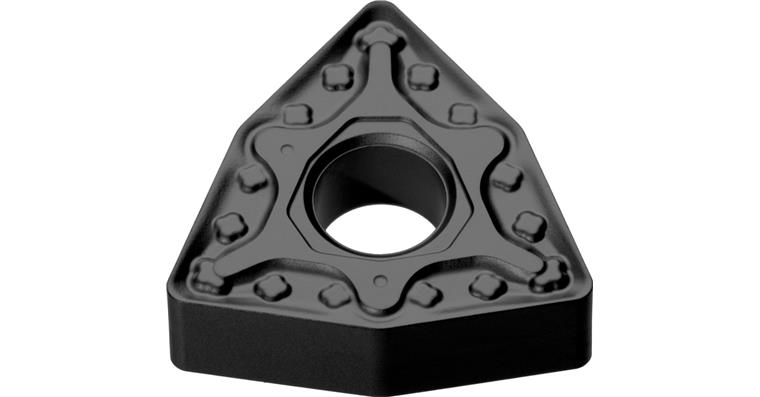

ISO-Code Rotating: WNMG 060408
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 0.8-2.5 mm
f min./max.: 0.15-0.25 mm/U
Materials group: P (primary application) | S (primary application) | M (primary application)
f min.: 0,15 mm/r
max. f: 0,25 mm/r
max. ap: 2,5 mm
min. ap: 0,8 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MM
Min./max. Vc in steel: 50-140 m/min
Min./max. Vc in stainless steel: 100-230 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875259

EAN no.: 4066107006624
