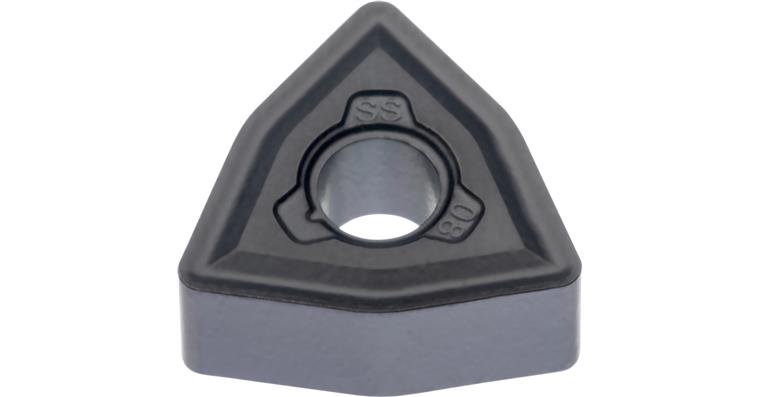

ATORN indexable insert WNMG 060404-RM1 ACM25T-1

ATORN indexable insert WNMG 060404-RM1 ACM25T-1

ATORN indexable insert WNMG 060404-RM1 ACM25T-1
Item no: 1018620 928

Online price:

Available in 6-8 working days.

Notes
Indexable insert WNMG 060404-RM1 ACM25T-1

Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: ACM25T-1
ISO-Code Rotating: WNMG 060404
min./max. ap: 0.5-3 mm
f min./max.: 0.12-0.6 mm/U
f min.: 0,12 mm/r
max. f: 0,6 mm/r
max. ap: 3 mm
min. ap: 0,5 mm
Chip breaker code: RM1
Min./max. Vc in stainless steel: 110-240 m/min

ATORN-No.: 12350670

EAN no.: 4066107027896

Product Datasheet Datasheet cutting values
