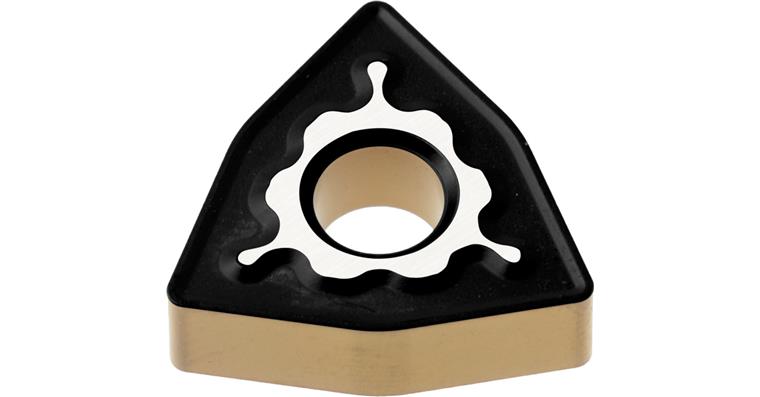

ATORN indexable insert WNMG 080408-RP4 HC7605

ATORN indexable insert WNMG 080408-RP4 HC7605

ATORN indexable insert WNMG 080408-RP4 HC7605
Item no: 1018620 833

Online price:

Available for immediate delivery

Advantage
  • Extreme hardness and wear resistance, for very high service life requirements in very favourable cutting conditions
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P05
Carbide type: HC7605
ISO-Code Rotating: WNMG 080408
Material to be processed: Cast iron | Steel
min./max. ap: 0.8-5 mm
f min./max.: 0.2-0.55 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,2 mm/r
max. f: 0,55 mm/r
max. ap: 5 mm
min. ap: 0,8 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP4
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350326

EAN no.: 4050293664492

Product Datasheet Datasheet cutting values
