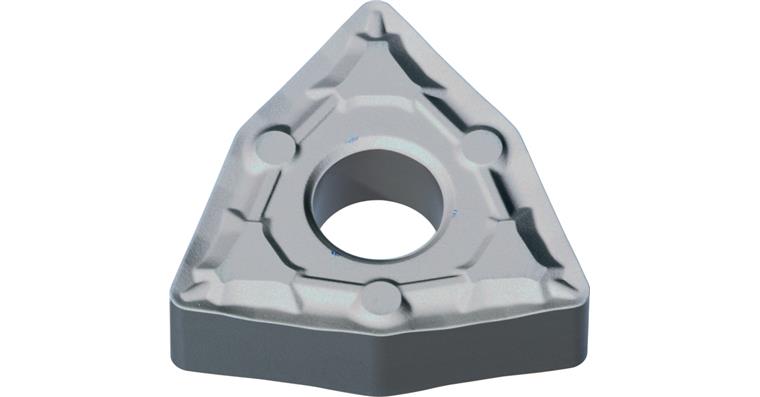

ATORN indexable insert, negative, WNMG 060404-FP HC7620

ATORN indexable insert, negative, WNMG 060404-FP HC7620

ATORN indexable insert, negative, WNMG 060404-FP HC7620
Item no: 1018620 628

Online price:

Available in 4-6 working days.

Application
For longitudinal turning and facing with low cutting depths in moderate cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and toughness, for high process stability and a wide range of applications
  • Very positive chip breaker for ideal chip breaking at low cutting depths


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P20
Carbide type: HC7620
ISO-Code Rotating: WNMG 060404
Material to be processed: Steel | Cast metal
min./max. ap: 0.1-1.5 mm
f min./max.: 0.04-0.2 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,04 mm/r
max. f: 0,2 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP
Min./max. Vc in steel: 90-350 m/min
Min./max. Vc in cast iron: 120-290 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870664

EAN no.: 4050293352382
