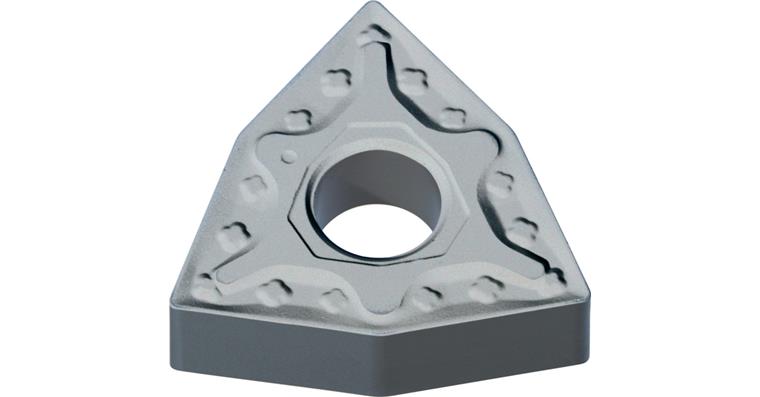

ATORN indexable insert, negative, WNMG 080404-MP HC7630

ATORN indexable insert, negative, WNMG 080404-MP HC7630

ATORN indexable insert, negative, WNMG 080404-MP HC7630
Item no: 1018620 413

Online price:

Available in 4-6 working days.

Application
For longitudinal turning and facing with a wide infeed range in unfavourable cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Very tough type with low risk of breakage in unfavourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: P30
Carbide type: HC7630
ISO-Code Rotating: WNMG 080404
Material to be processed: Steel
min./max. ap: 0.5-4 mm
f min./max.: 0.16-0.25 mm/U
Materials group: P (primary application)
f min.: 0,16 mm/r
max. f: 0,25 mm/r
max. ap: 4 mm
min. ap: 0,5 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP
Min./max. Vc in steel: 60-220 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870670

EAN no.: 4050293352450

Product Datasheet
