ATORN indexable insert, positive, VCMT 110304-MP HC7610

ATORN indexable insert, positive, VCMT 110304-MP HC7610

ATORN indexable insert, positive, VCMT 110304-MP HC7610
Item no: 1018615 521

Online price:

Available for immediate delivery

Application
For longitudinal turning and copy turning with a wide infeed range in favourable cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: 03
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P10
Carbide type: HC7610
ISO-Code Rotating: VCMT 110304
Material to be processed: Steel | Cast metal
min./max. ap: 0.4-2.5 mm
f min./max.: 0.12-0.2 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,12 mm/r
max. f: 0,2 mm/r
max. ap: 2,5 mm
min. ap: 0,4 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP
Min./max. Vc in steel: 160-380 m/min
Min./max. Vc in cast iron: 140-280 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870644

EAN no.: 4050293351804

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Jacket IMAGE DRESS new design anthracite/black size 44
  •
    ATORN machine thread former HSSE TiCN C 0° M16 2 6HX
  •
    ATORN indexable insert, positive, VCMT 160404-MP HC7520
  •
    ATORN indexable insert, positive, VCMT 110308-MP HC7630
  •
    ATORN indexable insert, negative, WNMG 060404-MM HC7530
  •
    ATORN indexable insert, negative, CNMG 120408-MM HC7520
  •
    ATORN indexable insert, positive, DCGT 11T304-MN HC6310
  •
    ATORN machine tap HSSE PM HL, 6HX, 45 degrees, form C, H6 M10
  •

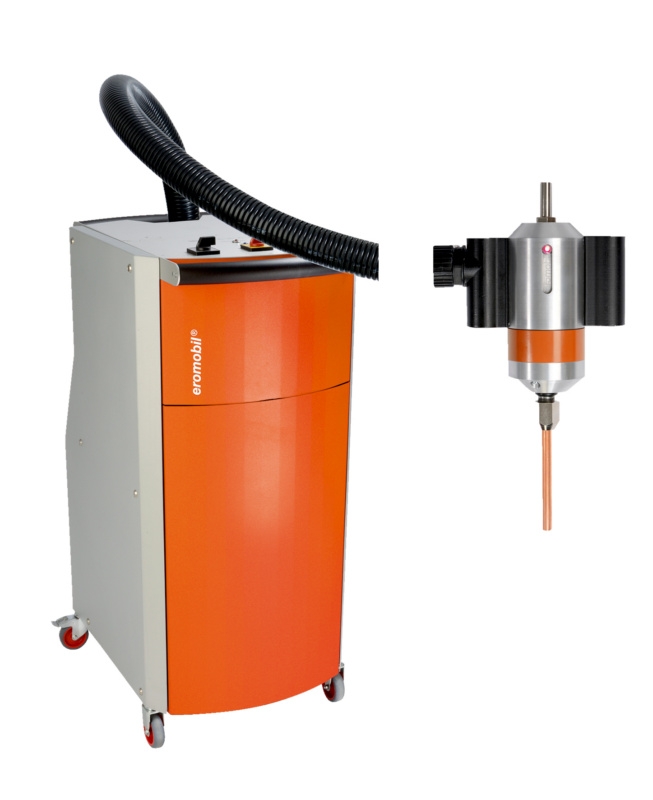

    eromobil® er 230 s-ND EDM drilling machine for threads of M 2-M 20
  •
