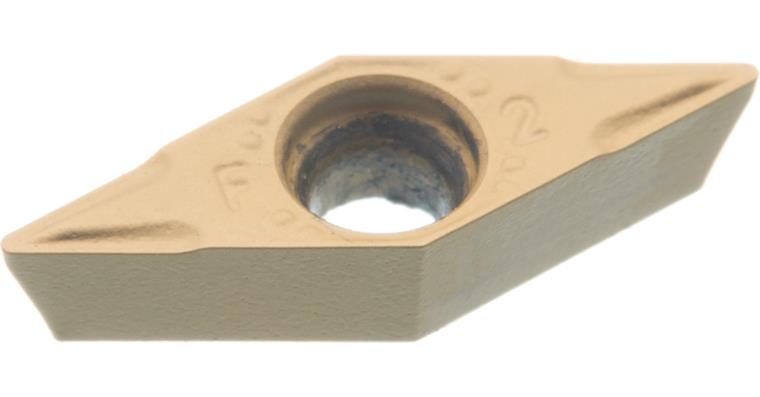

ATORN indexable insert, positive, VCMT 070204-FP1 HC7625

ATORN indexable insert, positive, VCMT 070204-FP1 HC7625

ATORN indexable insert, positive, VCMT 070204-FP1 HC7625
Item no: 1018615 096

Online price:

Available in 4-6 working days.

Application
For longitudinal turning and copy turning with low cutting depths in moderate cutting conditions

Execution
Ground cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and toughness, for high process stability and a wide range of applications
  • Very positive chip breaker for ideal chip breaking at low cutting depths


Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: HC7625
ISO-Code Rotating: VCMT 070204
Material to be processed: Steel | Stainless steel | Cast metal
min./max. ap: 0.1-1.5 mm
f min./max.: 0.05-0.15 mm/U
Materials group: P (primary application) | K (primary application) | M (primary application)
f min.: 0,05 mm/r
max. f: 0,15 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 110-220 m/min
Min./max. Vc in cast iron: 120-190 m/min
Min./max. Vc in stainless steel: 60-120 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12230127

EAN no.: 4050293391213

Product Datasheet
