ATORN indexable insert VBMT 160404-MM2 ACM25T-1

ATORN indexable insert VBMT 160404-MM2 ACM25T-1

ATORN indexable insert VBMT 160404-MM2 ACM25T-1
Item no: 1018614 617

Online price:

Available for immediate delivery

Notes

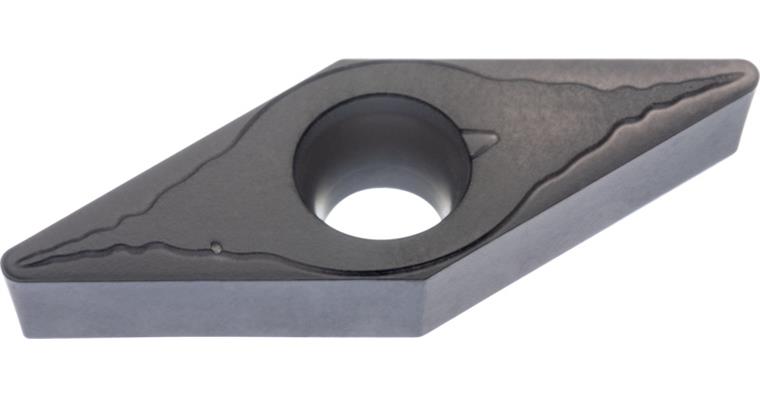

Indexable insert VBMT 160404-MM2 ACM25T-1

Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: B
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: ACM25T-1
ISO-Code Rotating: VBMT 160404
min./max. ap: 0.23-2.7 mm
f min./max.: 0.07-0.32 mm/U
f min.: 0,07 mm/r
max. f: 0,32 mm/r
max. ap: 2,7 mm
min. ap: 0,23 mm
Chip breaker code: MM2
Min./max. Vc in stainless steel: 110-240 m/min

ATORN-No.: 12350563

EAN no.: 4066107026820

Product Datasheet Datasheet cutting values
