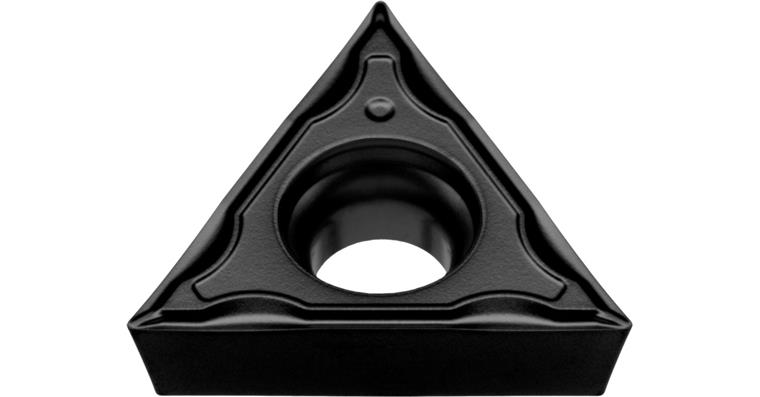

ATORN indexable insert TCMT 16T302 finishing FM HC7820

ATORN indexable insert TCMT 16T302 finishing FM HC7820

ATORN indexable insert TCMT 16T302 finishing FM HC7820
Item no: 1018594 602

Online price:

Available in 4-6 working days.

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 02
Coating: PVD
Carbide type area ISO: P | M | S
Machining conditions for indexable insert: Medium
Carbide type ISO: P15 | S10 | M30 | S30 | M10 | P25
Carbide type: HC7820
ISO-Code Rotating: TCMT 16T302
Material to be processed: Stainless steel | Special alloy | Steel
min./max. ap: 0.1-1.0 mm
f min./max.: 0.4-0.12 mm/U
Materials group: P (primary application) | S (primary application) | M (primary application)
f min.: 0,4 mm/r
max. f: 0,12 mm/r
max. ap: 1,0 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FM
Min./max. Vc in steel: 70-130 m/min
Min./max. Vc in stainless steel: 150-220 m/min
Min./max. Vc in special alloys: 40-60 m/min

ATORN-No.: 10875230

EAN no.: 4066107006334

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

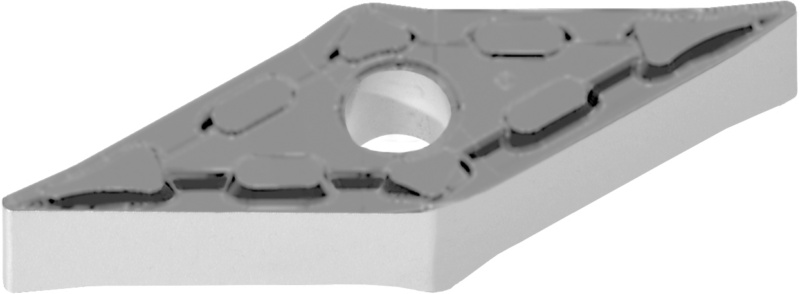

  • ATORN indexable insert VNMG 160408 finishing FM HC7520
  •
