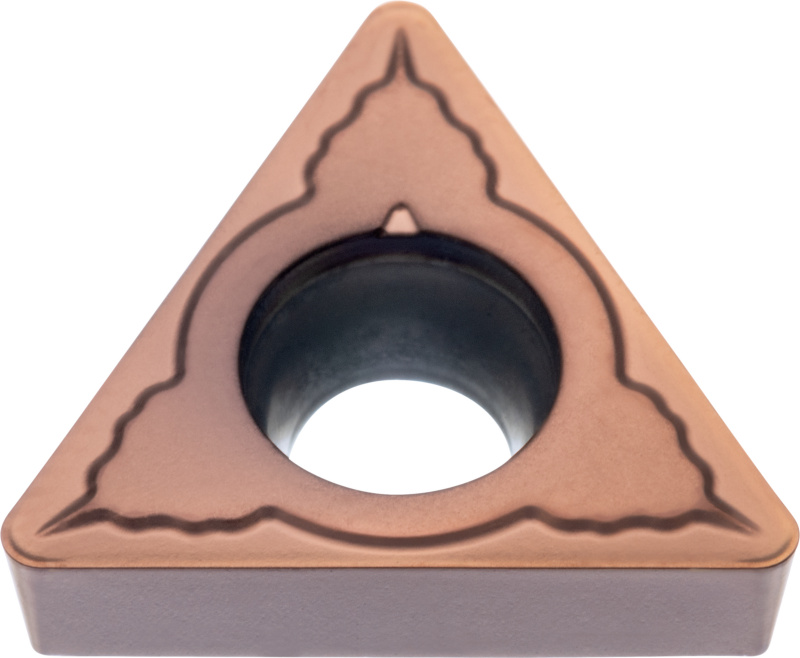

ATORN indexable insert, positive, TCMT 16T308-MP HC7530

ATORN indexable insert, positive, TCMT 16T308-MP HC7530

ATORN indexable insert, positive, TCMT 16T308-MP HC7530
Item no: 1018594 505

Online price:

Only while stocks last: 2
Replacement article

Application
For longitudinal turning and facing with a wide infeed range in unfavourable cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Very tough type with low risk of breakage in unfavourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: M30
Carbide type: HC7530
ISO-Code Rotating: TCMT 16T308
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.6-4 mm
f min./max.: 0.18-0.35 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,18 mm/r
max. f: 0,35 mm/r
max. ap: 4 mm
min. ap: 0,6 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MPX
Min./max. Vc in stainless steel: 90-160 m/min
Min./max. Vc in special alloys: 20-50 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870455

EAN no.: 4050293081053

Product Datasheet
Additional articles

Please select a button.

Replacement article
Versions
loading
Keywords:

You might also be interested in this

  • Flat sliding block DIN 6322 B for nominal groove size 24/32 mm
    13,68 €
  • ATORN indexable insert TCMT 110304-MM2 ACM25T-1
  •

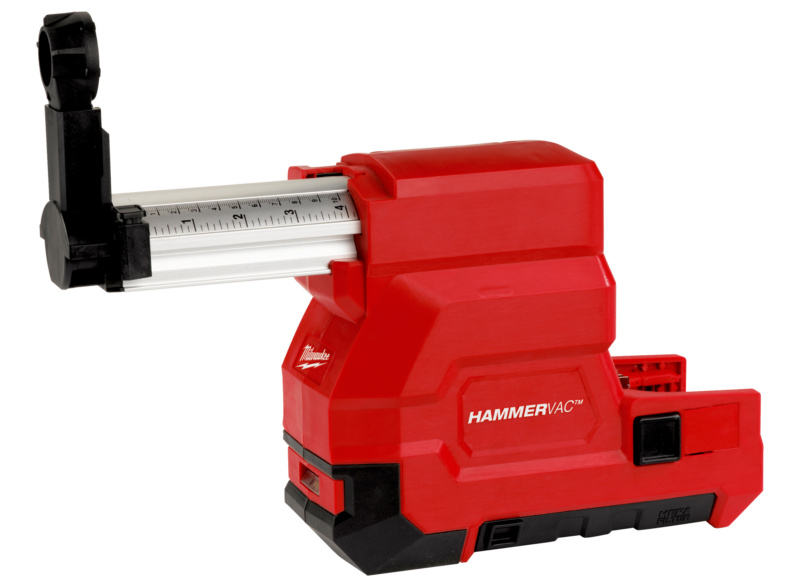

    M18-28 CPDEX dust extraction for cat. no. 90 322 101
  •
    ATORN indexable insert, positive, VCMT 160408-MP HC7610
  •
    ATORN indexable insert, negative, WNMG 080408-MS HC7220
  •
    ATORN indexable insert, negative, WNMG 080408-MS HC7210
  •

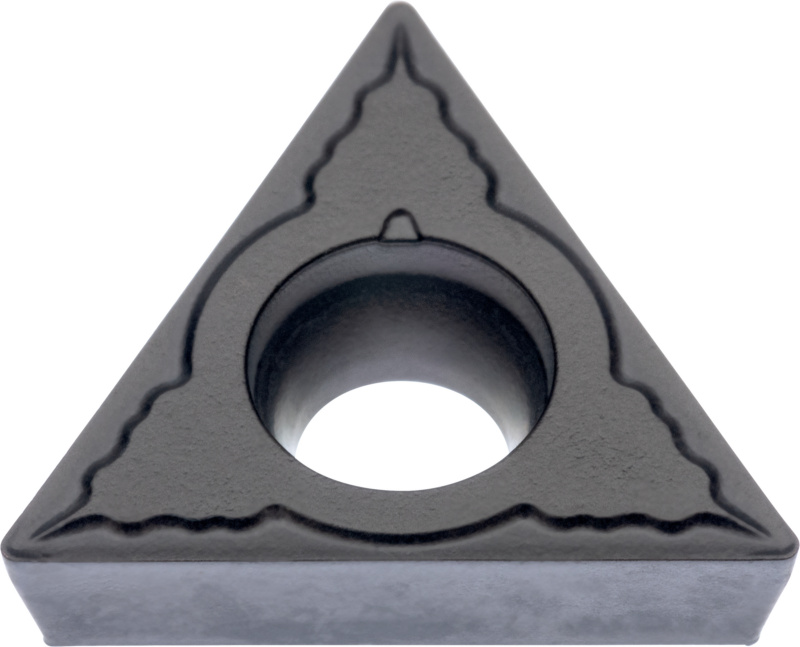

    ATORN indexable insert TCMT 110202 finishing FP HC7520
  •
