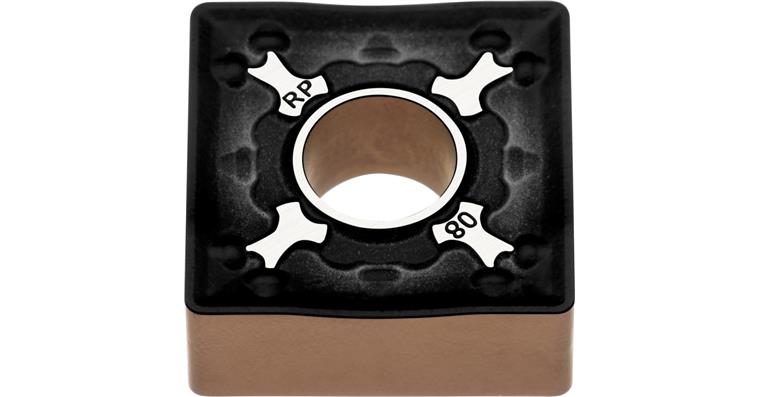

ATORN indexable insert SNMM 190612-RP7 ACP25T-1

ATORN indexable insert SNMM 190612-RP7 ACP25T-1

ATORN indexable insert SNMM 190612-RP7 ACP25T-1
Item no: 1018581 348

Online price:

Available in 6-8 working days.

Notes
SNMM indexable insert, roughing RP7

Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: M
Size of indexable insert ISO: 19
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 12
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1
ISO-Code Rotating: SNMM 190612
Material to be processed: Steel | Cast iron
min./max. ap: 2-12 mm
f min./max.: 0.15-1.5 mm/U
f min.: 0,15 mm/r
max. f: 1,5 mm/r
max. ap: 12 mm
min. ap: 2 mm
Chip breaker code: RP7
Min./max. Vc in steel: 100-300 m/min
Min./max. Vc in cast iron: 125-350 m/min

ATORN-No.: 12350902

EAN no.: 4066107045180

Product Datasheet Datasheet cutting values
