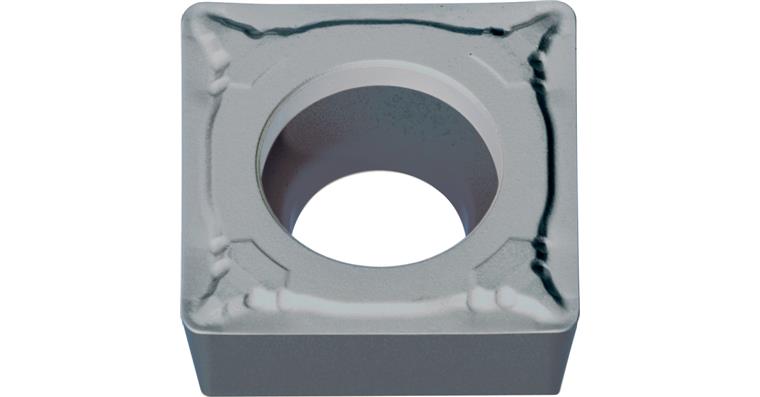

ATORN indexable insert, positive, SCMT 09T304-FP HC7620

ATORN indexable insert, positive, SCMT 09T304-FP HC7620

ATORN indexable insert, positive, SCMT 09T304-FP HC7620
Item no: 1018578 243

Online price:

Available for immediate delivery

Application
For longitudinal turning and facing with low cutting depths in moderate cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and durability, for high process stability and broad range of applications
  • Very positive chip breaker ensures ideal chip breaking at low cutting depths


Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P20
Carbide type: HC7620
ISO-Code Rotating: SCMT 09T304
Material to be processed: Steel | Cast metal
min./max. ap: 0.1-1.5 mm
f min./max.: 0.05-0.15 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,05 mm/r
max. f: 0,15 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP
Min./max. Vc in steel: 110-320 m/min
Min./max. Vc in cast iron: 140-240 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870592

EAN no.: 4050293352061

Product Datasheet
