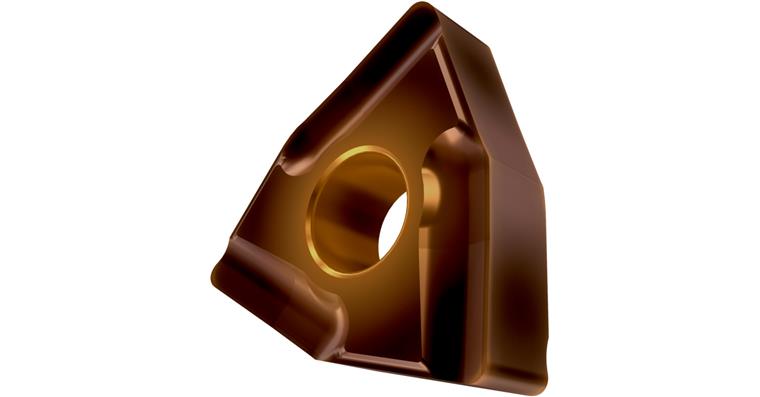

SC indexable insert WNMG 080404ER-SI:T8430

SC indexable insert WNMG 080404ER-SI:T8430

SC indexable insert WNMG 080404ER-SI:T8430
Item no: 1018571 112

Online price:

Available for immediate delivery

Application
- For fine finishing to medium machining
- For steel, stainless steel and cast iron
- Can be used for non-ferrous metals, special alloys and hardened material in certain circumstances
- For continuous cuts

Execution
  • Right-hand version
  • With chip breaker
  • Positive geometry

Advantage
  • High operational reliability
  • Excellent friction properties
  • Therefore suitable for applications at medium and lower cutting speeds


Material to be processed: Steel | Stainless steel | Non-ferrous metal | Special alloy | Cast metal | Hardened steel
Brand: DORMER PRAMET
ISO-Code Rotating: WNMG 080404
Supply type: Medium finishing | Smoothing
Cutting material: SC
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Inner circle diameter (IC): 5,16 mm
Knife edge length (L): 8 mm
Mounting bore diameter (D1): 5,16 mm
Corner radius (RE): 0,4 mm
Thickness of indexable insert (S): 4,76 mm
Carbide type: T8430
Chip breaker code: ER-SI
Coating: PVD
Materials group: P (primary application) | M (primary application) | N (secondary application) | S (secondary application) | K (secondary application) | H (secondary application)
Carbide type ISO: P20 | P40 | M20 | M35 | K25 | K40 | N15 | N25 | S15 | S25 | H15 | H20
Machining conditions for indexable insert: Medium
Min./max. Vc in steel: 210-225 m/min
Min./max. Vc in stainless steel: 115-120 m/min
Min./max. Vc in non-ferrous metals: 585-615 m/min
Min./max. Vc in special alloys: 40-45 m/min
min./max. ap: 1.4-1.7 mm
f min./max.: 0.18-0.35 mm/U
Number of pieces per packet: 10 PCS

Manufacturer part no.: 7977163

EAN no.: 3603603817791

Product Datasheet Technical Datasheet
