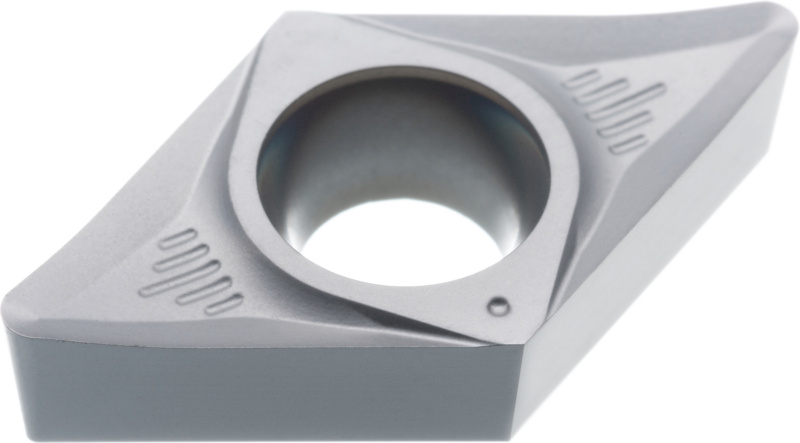

ATORN cemented carbide indexable insert DCGT11T302-FU1 HC7820

ATORN cemented carbide indexable insert DCGT11T302-FU1 HC7820

ATORN cemented carbide indexable insert DCGT11T302-FU1 HC7820
Item no: 1018564 206

Online price:

Available for immediate delivery

Application
For longitudinal turning and copy turning with low cutting depths in moderate cutting conditions

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 02
Coating: PVD
Carbide type area ISO: M | S | P
Machining conditions for indexable insert: Medium
Carbide type ISO: M10 | M30 | S10 | S30 | P15 | P25
Carbide type: HC7820
ISO-Code Rotating: DCGT 11T302
min./max. ap: 0.2-2.0 mm
f min./max.: 0.05-0.12 mm/U
f min.: 0,05 mm/r
max. f: 0,12 mm/r
max. ap: 2,0 mm
min. ap: 0,2 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FU1
Min./max. Vc in steel: 50-130 m/min
Min./max. Vc in stainless steel: 100-210 m/min
Min./max. Vc in special alloys: 40-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10875105

EAN no.: 4050293561203

Product Datasheet
