ATORN cemented carbide indexable insert DCGT11T304-FU1 HC7810

ATORN cemented carbide indexable insert DCGT11T304-FU1 HC7810

ATORN cemented carbide indexable insert DCGT11T304-FU1 HC7810
Item no: 1018564 107

Online price:

Available for immediate delivery

Application
For longitudinal turning and copy turning with low cutting depths in favourable cutting conditions

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 04
Coating: PVD
Carbide type area ISO: M | S | P
Machining conditions for indexable insert: Good
Carbide type ISO: M01 | M20 | S01 | S20 | P05 | P20
Carbide type: HC7810
ISO-Code Rotating: DCGT 11T304
min./max. ap: 0.2-2.5 mm
f min./max.: 0.08-0.25 mm/U
f min.: 0,08 mm/r
max. f: 0,25 mm/r
max. ap: 2,5 mm
min. ap: 0,2 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FU1
Min./max. Vc in steel: 80-160 m/min
Min./max. Vc in stainless steel: 130-220 m/min
Min./max. Vc in special alloys: 40-70 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10875121

EAN no.: 4050293561364

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN long bi-hexagon socket 18 mm 1/2 inch
  •
    ATORN cemented carbide indexable insert DCMT11T304-FP HC7520
    9,15 €
  • High-feed indexable milling insert BNGX 10T308SR-HM M8330
  •
    Combination wrench 15° DIN 3113 AF 20x20 mm
  •
    ATORN twist drill HSSE-V3 TiAlN 5XD 4.0 x 4 mm x 75 mm
  •
    ATORN drill thread milling cutter circular SC TiAlN straight shank HA M16x2
  •
    Blind hole screw tap SGSP spiral-fluted 45° HSS-PM-SG 3xD DIN 376 shape C 6H M16
  •
    SC prof. cutter type 2 BB start roller dia. 3.0 mm DxL 6x34 TA 0° TA coat.
  •
    ATORN ratchet combination wrench, 9 mm, angled 15°, reversing lever
  •
    Through hole screw tap MF DIN 374 shape C 2.5xD HSS-E MF18x1.50
  •
    Workpiece stop for jaw width 160/200 mm for Hilma clamp
    183,52 €

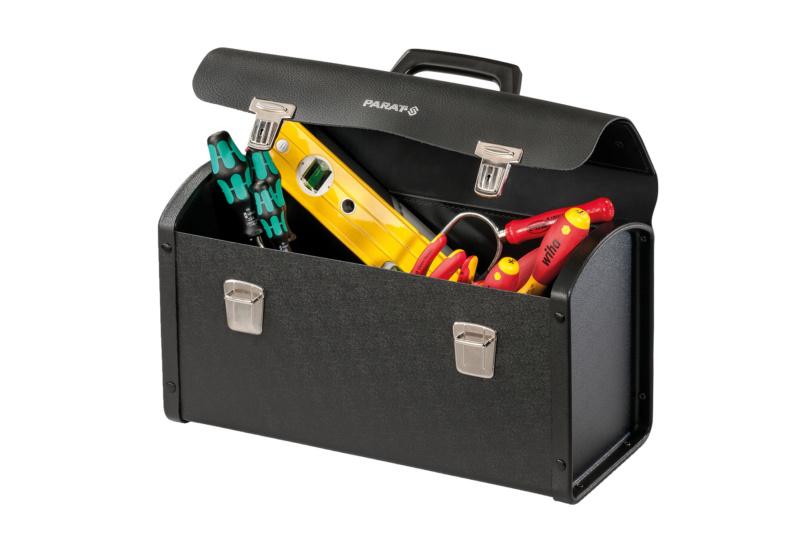

  • Tool bag cowhide black 390x170x230 mm empty
