ATORN cemented carbide indexable insert DCGT070202-FU1 HC7810

ATORN cemented carbide indexable insert DCGT070202-FU1 HC7810

ATORN cemented carbide indexable insert DCGT070202-FU1 HC7810
Item no: 1018564 101

Online price:

Still in stock: 2

Application
For longitudinal turning and copy turning with low cutting depths in favourable cutting conditions

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • very positive chip breaker, ensures ideal chip breaking with small cutting depths


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 02
Coating: PVD
Carbide type area ISO: M | S | P
Machining conditions for indexable insert: Good
Carbide type ISO: M01 | M20 | S01 | S20 | P05 | P20
Carbide type: HC7810
ISO-Code Rotating: DCGT 070202
min./max. ap: 0.2-2.0 mm
f min./max.: 0.05-0.12 mm/U
f min.: 0,05 mm/r
max. f: 0,12 mm/r
max. ap: 2,0 mm
min. ap: 0,2 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FU1
Min./max. Vc in steel: 80-160 m/min
Min./max. Vc in stainless steel: 130-220 m/min
Min./max. Vc in special alloys: 40-70 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10875118

EAN no.: 4050293561333

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

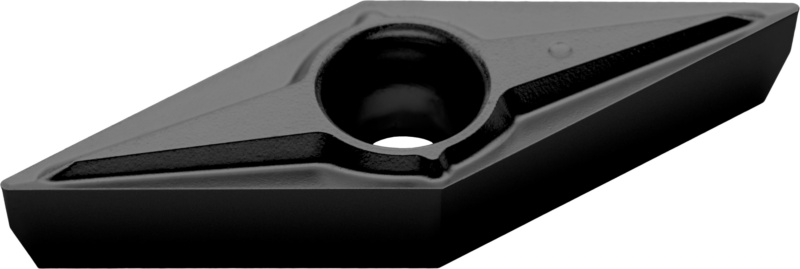

  • ATORN cemented carbide indexable insert VCGT160404-FU1 HC7810
  •
    ATORN cemented carbide indexable insert VCGT160402-FU1 HC7810
  •
    ATORN cemented carbide indexable insert VCGT110304-FU1 HC7820
    21,21 €
  • ATORN cemented carbide indexable insert DCGT070202-FU1 HC7820
  •
    ATORN cemented carbide indexable insert CCGT060204-FU1 HC7810
  •
    ATORN thread cutting insert holder SEL1616H16
  •
    ATORN cemented carbide indexable insert VCGT160404-FU1 HC7820
  •
    ATORN cemented carbide indexable insert CCGT060204-FU1 HC7820
  •
    Quick-In Gewindebohraufsatz
    119,90 €
  • Führungszapfen rotierend Gr. RK 2/30,0
  •
    ATORN cemented carbide indexable insert DCGT070101-FU1 HC7820
  •

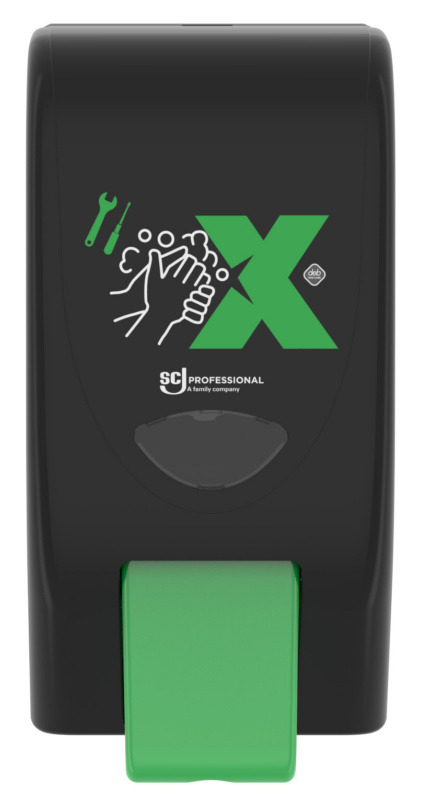

    Solopol® GFX™ foam dispenser for 3.25 litre cartridge

Frequently bought together

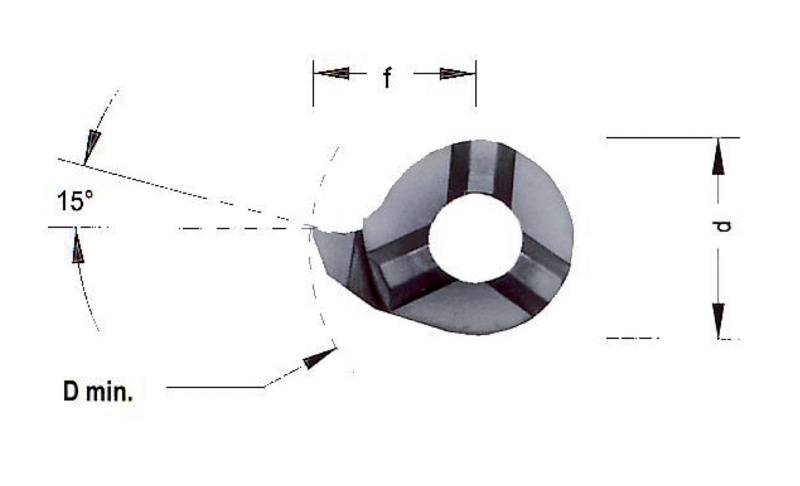

  • Carbide cut. insert MINI-CUT left LS014.0110 circlip grooves HC8620/TiAlN
  •
