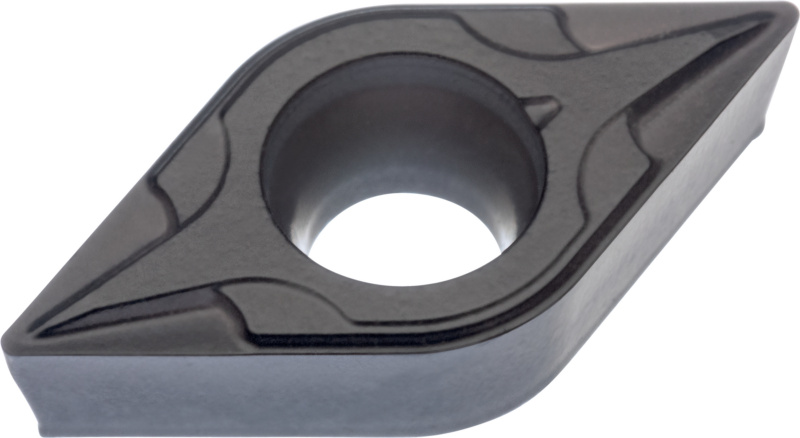

ATORN indexable insert DCMT 11T308-FM2 ACM25T-1

ATORN indexable insert DCMT 11T308-FM2 ACM25T-1

ATORN indexable insert DCMT 11T308-FM2 ACM25T-1
Item no: 1018560 802

Online price:

Available in 6-8 working days.

Notes
Indexable insert DCMT 070204-FM2 ACM25T-1

Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 08
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: ACM25T-1
ISO-Code Rotating: DCMT 11T308
min./max. ap: 0.2-2 mm
f min./max.: 0.03-0.3 mm/U
f min.: 0,03 mm/r
max. f: 0,3 mm/r
max. ap: 2 mm
min. ap: 0,2 mm
Chip breaker code: FM2
Min./max. Vc in stainless steel: 110-240 m/min

ATORN-No.: 12350442

EAN no.: 4066107025618

Product Datasheet
