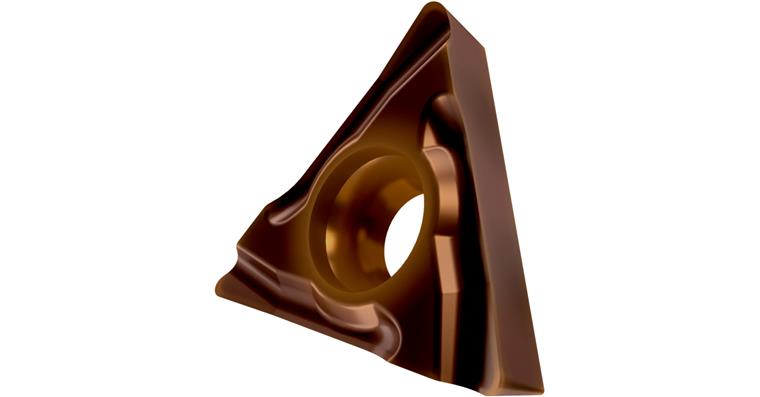

SC indexable insert TCGT 110202ER-SI:T8315

SC indexable insert TCGT 110202ER-SI:T8315

SC indexable insert TCGT 110202ER-SI:T8315
Item no: 1018558 102

Online price:

Available for immediate delivery

Application
- For fine finishing to medium machining
- For steel, stainless steel and cast iron
- Can be used for non-ferrous metals, special alloys and hardened material in certain circumstances
- For continuous cuts

Execution
  • Right-hand version
  • With chip breaker
  • Positive geometry

Advantage
  • High operational reliability
  • Excellent friction properties
  • Therefore suitable for applications at medium and lower cutting speeds


Material to be processed: Non-ferrous metal | Special alloy | Hardened steel | Steel | Stainless steel | Cast metal
Brand: DORMER PRAMET
ISO-Code Rotating: TCGT 110202
Supply type: Medium finishing | Smoothing
Surface: Coated
Cutting material: SC
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: G
Indexable insert type ISO: T
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 02
Inner circle diameter (IC): 2,8 mm
Knife edge length (L): 11 mm
Mounting bore diameter (D1): 2,8 mm
Corner radius (RE): 0,2 mm
Thickness of indexable insert (S): 2,38 mm
Carbide type: T8315
Chip breaker code: ER-SI
Coating: PVD
Materials group: N (primary application) | K (primary application) | M (primary application) | P (secondary application) | H (primary application) | S (secondary application)
Carbide type ISO: K25 | N05 | S15 | P20 | M05 | H05 | S05 | P05 | N25 | H15 | M20 | K05
Machining conditions for indexable insert: Good
Min./max. Vc in steel: 190-195 m/min
Min./max. Vc in stainless steel: 110-115 m/min
Min./max. Vc in cast iron: 180-185 m/min
Min./max. Vc in special alloys: 40-45 m/min
min./max. ap: 0.6-0.8 mm
f min./max.: 0.08-0.12 mm/U
Number of pieces per packet: 10 PCS

Manufacturer part no.: 6922733

EAN no.: 3603603075597

Product Datasheet Technical Datasheet
