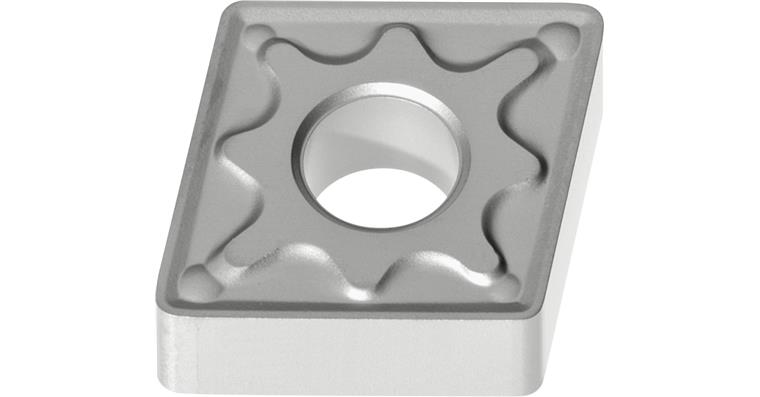

ATORN indexable insert, negative, CNMG 120408-WP HC7520

ATORN indexable insert, negative, CNMG 120408-WP HC7520

ATORN indexable insert, negative, CNMG 120408-WP HC7520
Item no: 1018554 620

Online price:

Only while stocks last: 10

Application
For longitudinal turning and facing with low cutting depths and high feed rates in moderate cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and durability; for high process stability and a broad range of uses
  • Positive wiper geometry, ideal for shallow plunging depths and high requirements for surface quality (same surface quality with twice the feed rate)


Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7520
ISO-Code Rotating: CNMG 120408
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.8-3 mm
f min./max.: 0.2-0.55 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,2 mm/r
max. f: 0,55 mm/r
max. ap: 3 mm
min. ap: 0,8 mm
Supply type: Smoothing - Wipergeometry for high surface quality with high feed values
Chip breaker code: WPX
Min./max. Vc in stainless steel: 120-260 m/min
Min./max. Vc in special alloys: 30-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870414

EAN no.: 4050293080674

Product Datasheet
