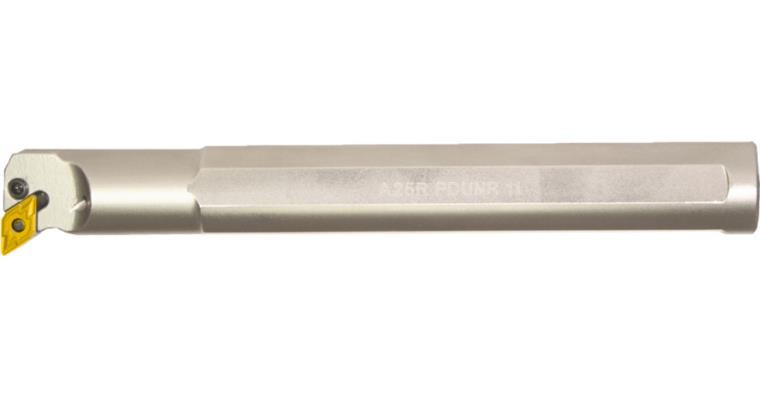

Boring bar w. cool. ch. right neg. 0° t.a. 55° s.a. 93° A32S-PDUNR-15 f. rh. II

Boring bar w. cool. ch. right neg. 0° t.a. 55° s.a. 93° A32S-PDUNR-15 f. rh. II

Boring bar w. cool. ch. right neg. 0° t.a. 55° s.a. 93° A32S-PDUNR-15 f. rh. II
Item no: 1018526 204

Online price:

Still in stock: 5

Application
For longitudinal and copy turning.

Execution
Approach angle 93°, for rhombus indexable inserts negative 0°, 55° tip angle


Brand: HHW
Min. bore diameter (D min.): 32 mm
Shank diameter (d): 32 mm
Clearance length (l2): 50 mm
Length (l1): 250 mm
Clamping surface height (h): 31 mm
Cutting edge height (h1): 22 mm
Suitable for indexable inserts (ISO): DN.. 1506..
Tool design: Right
Clearance angle: 0 Degree
Coolant supply: Internal
Cutting edge length: 16 mm
DIN: 8024
Direction of clearance angle: Negative
Grip system: P
Indexable insert angle: 55 Degree
Material: Hardened steel
Setting angle: 93 Degree
Shank type: Round | A
Shape of indexable insert ISO: D

EAN no.: 4024496048496

Product Datasheet
