ATORN MVUN boring bar, steel, negative, left, S 32 U MVUN R/L 16

ATORN MVUN boring bar, steel, negative, left, S 32 U MVUN R/L 16

ATORN MVUN boring bar, steel, negative, left, S 32 U MVUN R/L 16
Item no: 1018525 111

Online price:

Available in 6-8 working days.

Application
For copy and longitudinal turning using VN 35° indexable insert.

Execution

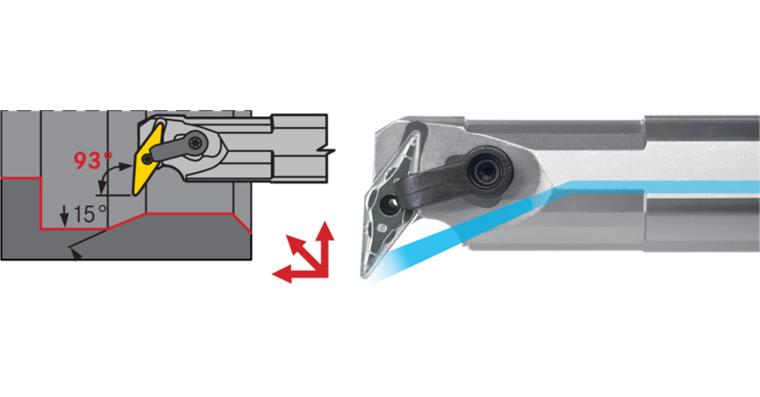

Precision-manufactured boring bar, steel, shape V, 93° pitch angle, 35° tip angle, 0° clearance angle

Advantage
  • very slim geometry, optimised for contour turning work
  • negative body geometry ensures good stability and absorption of force for large cutting depths
  • wide range of delivery: suitable for both finishing and roughing


Brand: ATORN
ISO name: S 32 U MVUN R/L 16
Min. bore diameter (D min.): 39 mm
Shank diameter (d): 32 mm
Clearance length (l2): 50 mm
Length (l1): 350 mm
Clamping surface height (h): 30 mm
Programming size (f): 22 mm
Suitable for indexable inserts (ISO): VN.. 1604..
Tool design: Left
DIN: 8024

ATORN-No.: 11220094

EAN no.: 4050293127577

Product Datasheet
