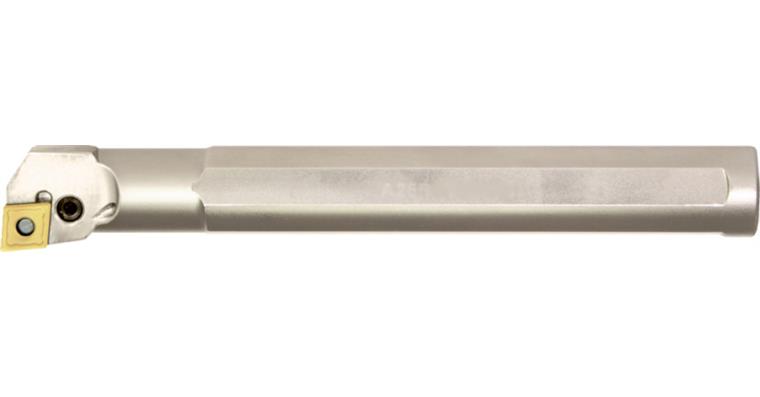

Boring bar cooling ch. right neg. 0° tip 80° set 95° f. square II A25S-PCLNR-12

Boring bar cooling ch. right neg. 0° tip 80° set 95° f. square II A25S-PCLNR-12

Boring bar cooling ch. right neg. 0° tip 80° set 95° f. square II A25S-PCLNR-12
Item no: 1018522 201

Online price:

Still in stock: 4

Application
For longitudinal turning and facing.

Execution
Approach angle 95°, for square indexable inserts negative 0°, 90° tip angle


Brand: HHW
Min. bore diameter (D min.): 32 mm
Shank diameter (d): 25 mm
Clearance length (l2): 50 mm
Length (l1): 250 mm
Clamping surface height (h): 23 mm
Cutting edge height (h1): 17 mm
Suitable for indexable inserts (ISO): CN.. 1204..
Tool design: Right
Clearance angle: 0 Degree
Coolant supply: Internal
Cutting edge length: 12 mm
DIN: 8024
Direction of clearance angle: Negative
Grip system: P
Indexable insert angle: 80 Degree
Material: Hardened steel
Setting angle: 95 Degree
Shank type: A
Shape of indexable insert ISO: C

EAN no.: 4024496048458

Product Datasheet
