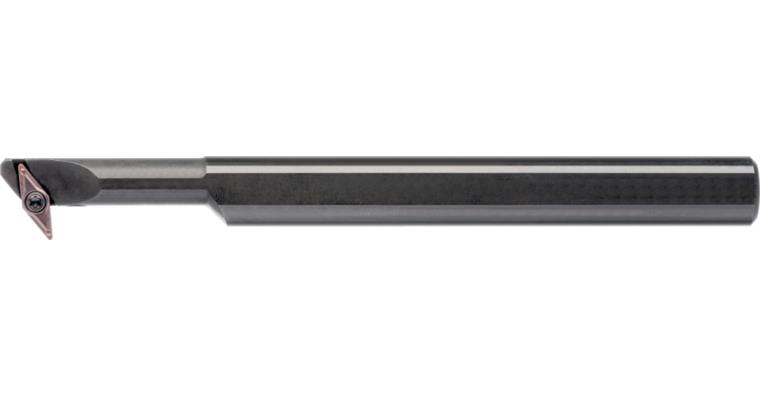

ATORN SV95C boring bar, steel, positive, right, A 16M SV95C R/L 07

Versions

Item no: 1018515 103

Online price:

Catalogue price: You save:

Available in 4-6 working days.

Min. order quantity: 1

Application
For longitudinal and copy turning with VC indexable insert 55°

Execution
Precision-manufactured boring bar, steel, with internal cooling, type V, pitch angle 95°, tip angle 35°, clearance angle 7°

Advantage

Slender geometry for longitudinal and copy turning
Positive geometry for the body ensures low cutting forces

Brand: ATORN
ISO name: A 16M SV95C R/L 07
Min. bore diameter (D min.): 17,5 mm
Shank diameter (d): 16 mm
Cutting edge height (h1): 10,0 mm
Clearance length (l2): 36 mm
Length (l1): 150 mm
Clamping surface height (h): 15 mm
Programming size (f): 11 mm
Suitable for indexable inserts (ISO): VC.. 0702..
Tool design: Right
DIN: 8024

ATORN-No.: 12230100

EAN no.: 4050293390940

Product Datasheet
