ATORN SDQC boring bar, HSS, positive, right, AH 12 M SDQC R/L 07

ATORN SDQC boring bar, HSS, positive, right, AH 12 M SDQC R/L 07

ATORN SDQC boring bar, HSS, positive, right, AH 12 M SDQC R/L 07
Item no: 1018502 102

Online price:

Available in 4-6 working days.

Application
For longitudinal and copy turning with DC indexable insert 55°.

Execution

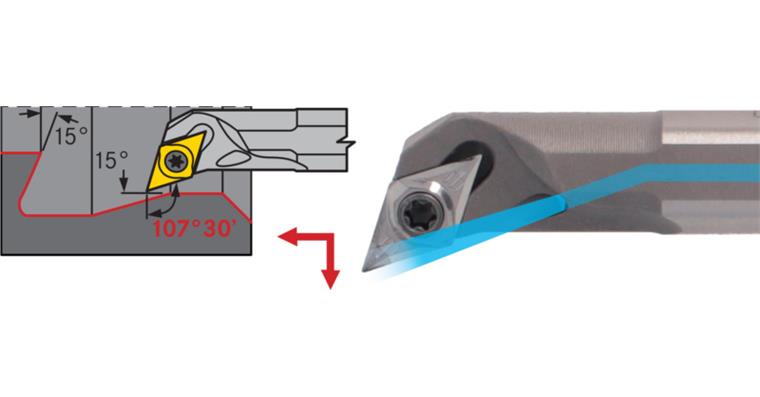

Precision-made boring bar, HSS, with internal cooling, type D, attack angle 107.5°, tip angle 55°, clearance angle 7°

Advantage
  • Very narrow geometry optimised for contour-turning work
  • Positive body geometry ensures low cutting forces
  • Very high rigidity and very good cut quality due to HSS base material


Brand: ATORN
ISO name: AH 12 M SDQC R/L 07
Min. bore diameter (D min.): 16 mm
Shank diameter (d): 12 mm
Cutting edge height (h1): 5,5 mm
Clearance length (l2): 20 mm
Length (l1): 150 mm
Clamping surface height (h): 11 mm
Programming size (f): 8,5 mm
Suitable for indexable inserts (ISO): DC.. 0702..
Tool design: Right
DIN: 8024

ATORN-No.: 11111284

EAN no.: 4050293347111
