ATORN SDUC offset boring bar, HSS, positive, right, AH 10 K SDUC R/L 07

ATORN SDUC offset boring bar, HSS, positive, right, AH 10 K SDUC R/L 07

ATORN SDUC offset boring bar, HSS, positive, right, AH 10 K SDUC R/L 07
Item no: 1018496 301

Online price:

Available in 4-6 working days.

Application

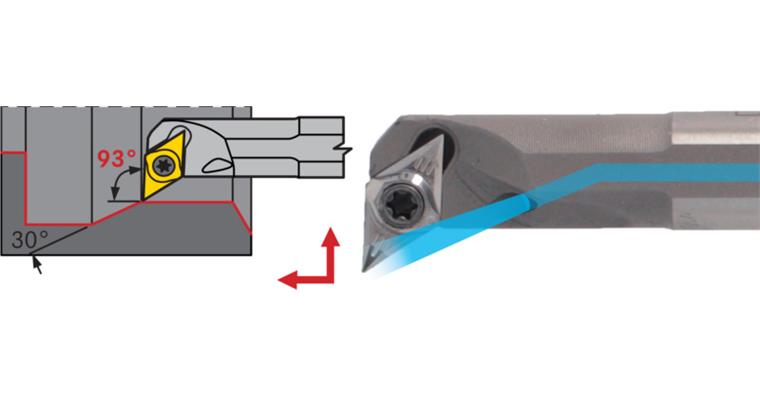

For longitudinal and copy turning with DC 55° indexable insert.

Execution
precision-manufactured HSS boring bar, with inner cooling, D type, 93.5° pitch angle, 55° tip angle, 7° clearance angle

Advantage
  • very slim geometry, optimised for contour turning work
  • positive body geometry ensures low cutting forces
  • Very high rigidity and cutting quality


Brand: ATORN
ISO name: AH 10 K SDUC R/L 07
Min. bore diameter (D min.): 14 mm
Shank diameter (d): 10 mm
Cutting edge height (h1): 4,5 mm
Clearance length (l2): 20 mm
Length (l1): 125 mm
Clamping surface height (h): 9 mm
Programming size (f): 7,5 mm
Suitable for indexable inserts (ISO): DC.. 0702..
Tool design: Right
DIN: 8024

ATORN-No.: 11111137

EAN no.: 4050293320411

Product Datasheet
