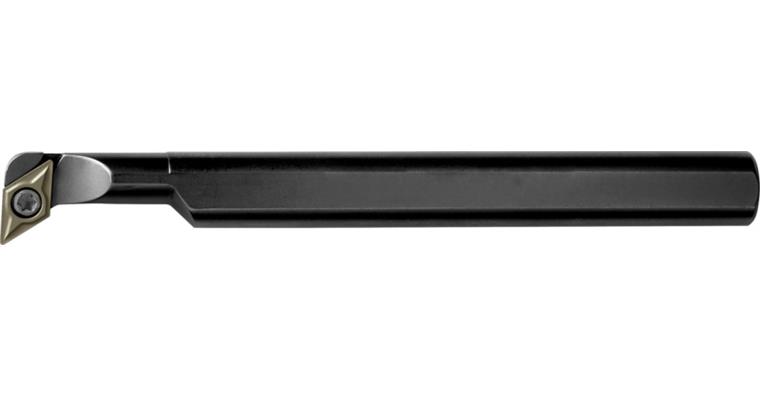

ATORN boring bar, positive, with internal cooling A0408F SDUCR04

ATORN boring bar, positive, with internal cooling A0408F SDUCR04

ATORN boring bar, positive, with internal cooling A0408F SDUCR04
Item no: 1018496 196

Online price:

Available in 4-6 working days.

Application
For longitudinal and copy turning using DC 55° indexable inserts

Execution
Precision-manufactured boring bar, steel, with internal cooling, offset, shape D, 93.5° pitch angle, 55° tip angle, 7° clearance angle

Advantage
  • Slim contour, optimised for copy turning work
  • Positive body geometry ensures low cutting forces


Brand: ATORN
ISO name: A0408F SDUC R/L 04
Min. bore diameter (D min.): 5,6 mm
Tapered diameter (d1): 4 mm
Shank diameter (d): 8 mm
Clearance length (l2): 15 mm
Length (l1): 80 mm
Clamping surface height (h): 7 mm
Programming size (f): 3 mm
Suitable for indexable inserts (ISO): DC.. 04..
Tool design: Right
DIN: 8024

ATORN-No.: 12232456

EAN no.: 4050293561982

Product Datasheet
