ATORN STFC boring bar, steel, positive, right, A 12 R STFC R/L 11

ATORN STFC boring bar, steel, positive, right, A 12 R STFC R/L 11

ATORN STFC boring bar, steel, positive, right, A 12 R STFC R/L 11
Item no: 1018490 202

Online price:

Available in 4-6 working days.

Application

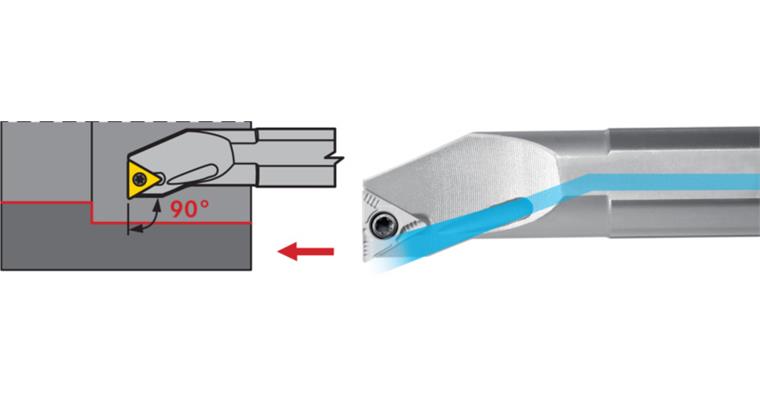

For longitudinal and copy turning with TC indexable insert 60°.

Execution
Precision-made boring bar, steel, with internal cooling, type T, attack angle 90°, tip angle 60°, clearance angle 7°

Advantage
  • Three-cutter geometry reduces the costs per cutter
  • Positive body geometry ensures low cutting forces


Brand: ATORN
ISO name: A 12 R STFC R/L 11
Min. bore diameter (D min.): 18 mm
Shank diameter (d): 12 mm
Cutting edge height (h1): 5,5 mm
Clearance length (l2): 20 mm
Length (l1): 140 mm
Clamping surface height (h): 11 mm
Programming size (f): 9 mm
Suitable for indexable inserts (ISO): TC.. 1102..
Tool design: Right
DIN: 8024

ATORN-No.: 11111051

EAN no.: 4050293110661

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Through hole screw tap M Rekord-2B-VA DIN 376 shape B 3xD HSS-E VA steels M14
  •

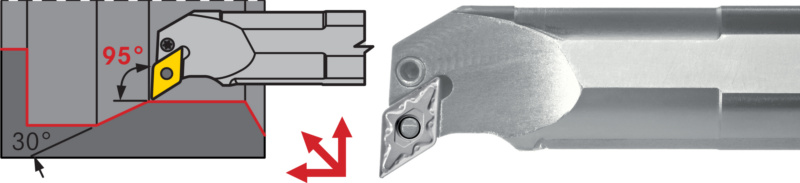

    ATORN SDQC boring bar, steel, positive, right, A 20 R SDQC R/L 11
  •
    ATORN PDUN boring bar, steel, negative, left, S 50 W PDUN R/L 15
  •

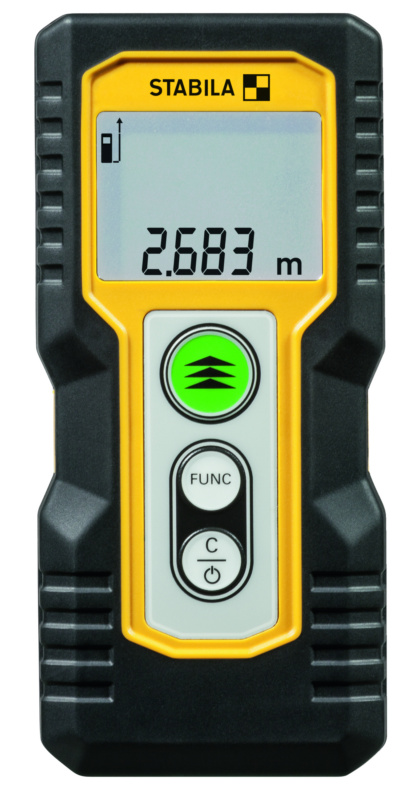

    Laser rangefinder GLM 40 measuring range 0.15-40 m
  •
