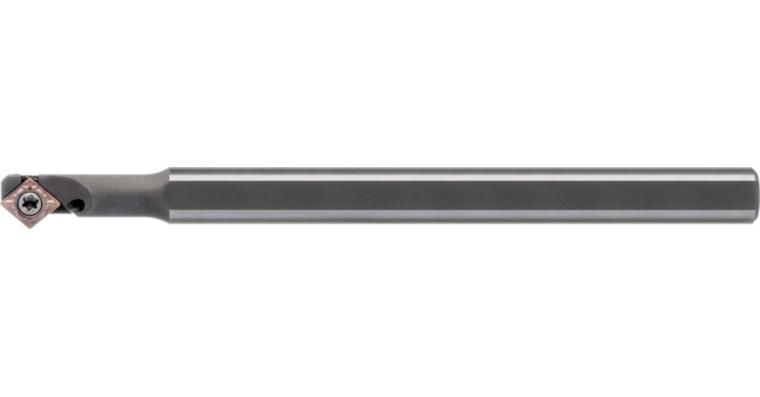

ATORN SCXP offset boring bar, steel, positive, left, A 1012K SCXP R/L 05

ATORN SCXP offset boring bar, steel, positive, left, A 1012K SCXP R/L 05

ATORN SCXP offset boring bar, steel, positive, left, A 1012K SCXP R/L 05
Item no: 1018489 202

Online price:

Available in 4-6 working days.

Application
For face and longitudinal turning with CP indexable insert, 80°.

Execution
Precision-manufactured boring bar, steel, with internal cooling, offset, type C, attack angle 95°, tip angle 80°, clearance angle 7°

Advantage
  • Universal use for face and longitudinal turning
  • Positive geometry for the body ensures low cutting forces


Brand: ATORN
ISO name: A 1012K SCXP R/L 05
Min. bore diameter (D min.): 13 mm
Tapered diameter (d1): 10 mm
Shank diameter (d): 12 mm
Clearance length (l2): 32 mm
Length (l1): 125 mm
Clamping surface height (h): 11 mm
Programming size (f): 7 mm
Suitable for indexable inserts (ISO): CP.. 05T1..
Tool design: Left
DIN: 8024

ATORN-No.: 12230029

EAN no.: 4050293390230

Product Datasheet
