ATORN SCLC mini boring bar, offset, HSS, positive, right, AH 0410 H SCLC R/L 03

ATORN SCLC mini boring bar, offset, HSS, positive, right, AH 0410 H SCLC R/L 03

ATORN SCLC mini boring bar, offset, HSS, positive, right, AH 0410 H SCLC R/L 03
Item no: 1018484 295

Online price:

Available in 4-6 working days.

Application
For face and longitudinal turning with CC indexable insert 80°.

Execution
Precision-made boring bar, HSS, with internal cooling, offset, type C, attack angle 95°, tip angle 80°, clearance angle 7°

Advantage
  • Universal use for face and longitudinal turning
  • Positive body geometry ensures low cutting forces
  • Very high rigidity and very good cut quality due to HSS base material


Brand: ATORN
ISO name: AH 0410 H SCLC R/L 03
Min. bore diameter (D min.): 5 mm
Tapered diameter (d1): 4 mm
Shank diameter (d): 10 mm
Clearance length (l2): 24 mm
Length (l1): 100 mm
Clamping surface height (h): 9 mm
Programming size (f): 2,5 mm
Suitable for indexable inserts (ISO): CC.. 03..
Tool design: Right
DIN: 8024

ATORN-No.: 11111278

EAN no.: 4050293344257

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN PDUN boring bar w clamping surface, steel, neg., right, A 32 S PDUN R/L 15
  •
    ATORN PCLN boring bar w clamping surface, steel, neg., right, A 25 R PCLN R/L 12
  •

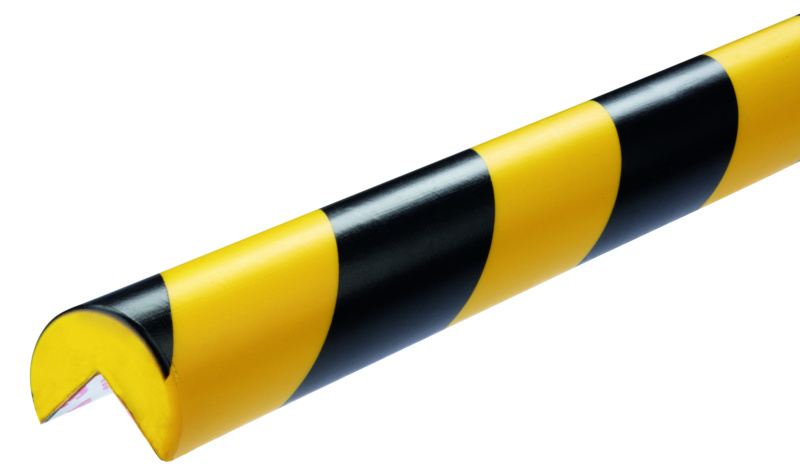

    Eckschutzprofil selbstklebend Typ C25R Profillänge 1m gelb/schwarz
  •
